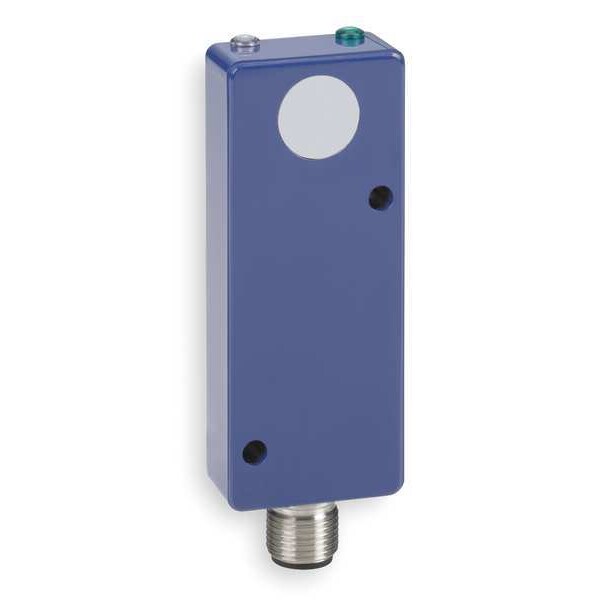

Ultrasonic Sensor, Analog, 254mm, 18mm dia. (Discontinued)
- Mfr # SM656AB0B00FP
- Zoro # G3303422
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
SM656AB0B00FP
Zoro #
G3303422
UPC #
785901547839
Country of Origin
United States
Dimensions
Diameter
18 mm
Length
3.32 in
Width
0.64 in
Length (Straight Wireway)
3.32 in
Details
Item
Cylindrical Ultrasonic Sensor
Case Material
Plastic
Circuit Type
Analog
Detecting Distance
254mm
Power Required
15 to 24V DC
Output
0 to 10V DC
Max. Load
50 mA
Electrical Connection
4 Pin M12 Male Connector
IP Rating
67
Operating Frequency
500 kHz
Operating Temp. Range
32 Degrees to 140 Degrees F
Response Time
2.5 msec
NEMA Rating
4X
Standards
CE, RoHS, UL
Description/Special Features
Fast Response Time
Description
Cylindrical Ultrasonic Sensor, Case Material Plastic, Diameter 18 mm, Detecting Distance 254mm, 0 to 10V DC Output, Circuit Type Analog, Max. Load 50 mA, Electrical Connection 4 Pin M12 Male Connector, Length 3.32 in, Width 0.64 in, Power Required 15 to 24V DC, NEMA Rating 4X, IP Rating 67, Operating Frequency 500 kHz, Standards CE, RoHS, UL, Operating Temp. Range 32 Degrees to 140 Degrees F, Description/Special Features Fast Response Time
