  11. Ultrasonic Sensor, Analog, 508mm, 15-24VDC

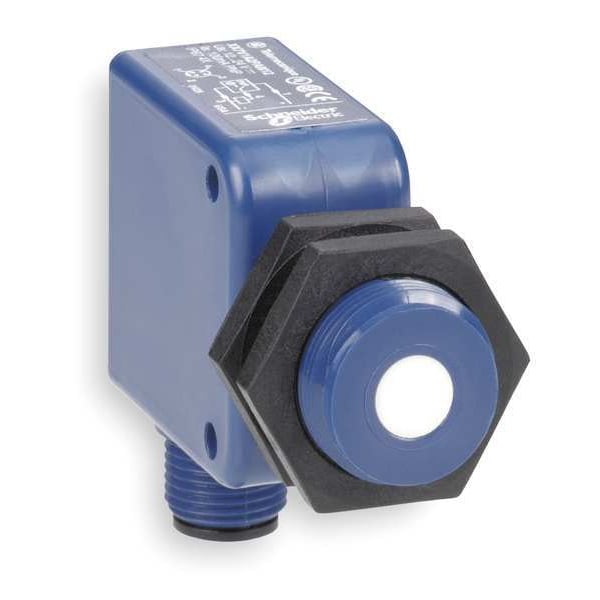

Telemecanique Sensors Ultrasonic Sensor, Analog, 508mm, 15-24VDC VM1CAQ - main

Ultrasonic Sensor, Analog, 508mm, 15-24VDC

  • Mfr # VM1CAQ

  • Zoro # G3102084

product price: $184.59
/ea
Free Shipping & Returns

Key Features

Case Material
Plastic
Circuit Type
Analog
Detecting Distance
508mm
Power Required
15 to 24V DC
Output
4 to 20ma DC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
VM1CAQ
Zoro #
G3102084
UPC #
785901596585
Country of Origin
United States

Dimensions

Length
2.35 in
Width
0.71 in
Depth
0.71 in
Length (Straight Wireway)
2.35 in
Height
43.7 mm
Minimum Size Of Detected Object
cylinder diameter 2.5 mm - up to 200 mm sensing distance
Overall Width
18 mm
Overall Height
44 mm
Overall Depth
66 mm

Details

Item
Rectangular Ultrasonic Sensor
Case Material
Plastic
Circuit Type
Analog
Detecting Distance
508mm
Power Required
15 to 24V DC
Output
4 to 20ma DC
Max. Load
40 mA
Electrical Connection
M12
IP Rating
IP67
Operating Frequency
300 kHz
Operating Temp. Range
-22 Degrees to 158 Degrees F
Response Time
60 msec
Description/Special Features
Dual Mount Body Style
Standards
CE, REACH, UL Listed
NEMA Rating
4X
Material
plastic
Repeat Accuracy
0.0127
Supply Voltage Limits
13-28 V DC
Vibration Resistance
+/-1 mm 10-55 Hz)IEC 60068-2-6
Resistance To Fast Transients
1 kV level 3 IEC 61000-4-4
Ip Degree Of Protection
IP67
Beam Angle
5°
[Sn] Nominal Sensing Distance
508-508 mm
Ambient Air Temperature For Operation
-30-70°C
Sensor Type
ultrasonic sensor
Relative Humidity
100-100 % without condensation
Nema Degree Of Protection
NEMA 4X indoor use only)
Current Consumption
40 mA
Iso Thread
M18 x 1
Status Led
off when object is within range 1 LED green)
Resistance To Electromagnetic Fields
10 V/m level 3 IEC 61000-4-3
Wiring Technique
4-wire
Ambient Air Temperature For Storage
-40-85°C
[Sd] Sensing Range
50.8-508 mm
Maximum Switching Current
40 mA reverse polarity protection
Blind Zone
0-51 mm
Series Name
Virtu VM1
Analogue Output Range
4...20 mA autoslope
Marking
CE
Shock Resistance
30 gn in all 3 axes 11 ms IEC 60068-2-27
Type Of Output Signal
analog
Transmission Frequency
300 kHz
Product Certifications
UL
Enclosure Material
valox
Resistance To Electrostatic Discharge
8 kV level 4 IEC 61000-4-2
Front Material
glass epoxy
Sensor Design
flat form + cylindrical M18
Device Short Name
VM1
[Sa] Assured Operating Distance
50.8-508 mm remote teach push-button
[Us] Rated Supply Voltage
15...24 V DC overload and short-circuit protection
Type Of Sensing Window
adjustable
Switching Frequency
300 kHz
Load Current - Maximum
40 mA
Resistance Properties
Electromagnetic Fields Resistant, Electrostatic Discharge Resistant, Electrical Fast Transient Resistant, Shock Resistant, Vibration Resistant
NEMA Enclosure Rating
4X
Series
Virtu VM1
Sensing Distance - Maximum
51 cm
Output Circuit Type
Analog
Number of Pins
4
Output Circuit Current - Minimum
4 mA
Operating Temperature - Maximum
158 Degrees F
Style
Rectangular
Body Material
Plastic
Output Circuit Current - Maximum
20 mA
Sensing Distance - Minimum
5 cm
Operating Temperature - Minimum
-22 Degrees F
Features
Overload Protection, Reverse Polarity Protection, Short Circuit Protection
Voltage Rating
13-28V DC

Description

Rectangular Ultrasonic Sensor, Case Material Plastic, Detecting Distance 508mm, 4 to 20mA DC Output, Circuit Type Analog, Max. Load 40 mA, Electrical Connection M12, Length 2.35 in, Width 0.71 in, Depth 0.71 in, Power Required 15 to 24V DC, NEMA Rating 4X, IP Rating IP67, Operating Frequency 300 kHz, Standards CE, REACH, UL Listed, Operating Temp. Range -22 Degrees to 158 Degrees F, Description/Special Features Dual Mount Body Style
