This item is Discontinued.

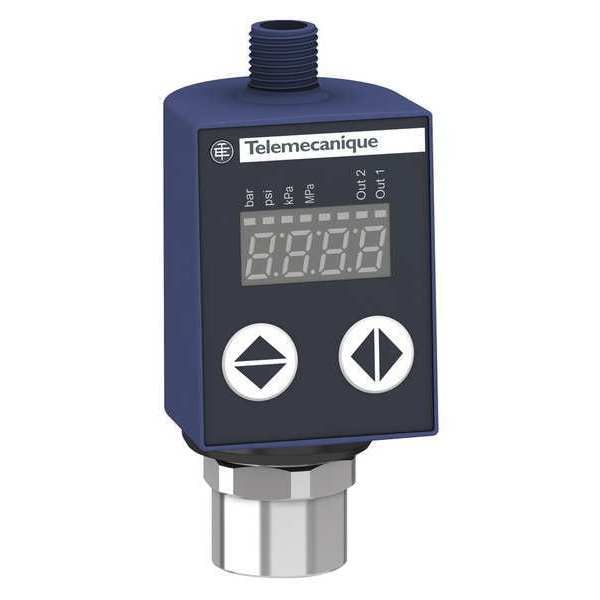

Telemecanique Sensors Vacuum Sensor, 43.5 psi, PNP XMLRM01G2P05

Vacuum Sensor, 43.5 psi, PNP (Discontinued)

  • Mfr # XMLRM01G2P05
  • Zoro # G2575697
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
XMLRM01G2P05
Zoro #
G2575697
UPC #
08438512501159
Country of Origin
China

Dimensions

Overall Height
3.66 in
Overall Depth
1.65 in
Overall Width
1.61 in

Details

Item
Vacuum Fluid and Air Pressure Sensor
Range
0 to -14.5 psi
Control Output
PNP
On/Off Setting
Programmable
Max. Pressure
43.5 psi
Power Required
24V DC
Process Connection
1/4 in NPT
Electrical Connection
4 Pin M12
Display
4 Digit LED
Operating Temp. Range
- 4 Degrees to 176 Degrees F
IP Rating
IP65, IP67
Housing Material
Polyacrylamide, Stainless Steel
Wetted Materials
Ceramic, Fluorocarbon, Stainless Steel
Standards
CE, CSA, cULus, EU RoHS, UL Listed, UL 50, UL 508
Pressure Connection Type
1/4" DIN
Operating Temperature - Maximum
176 Degrees F
Voltage Rating - Maximum
24 V DC
Pressure - Minimum
0 psi
Electrical Design Output
PNP
Pressure - Maximum
-14.5 psi
Series
XMLR
Operating Temperature - Minimum
-4 Degrees F
Proof Pressure
43 psi

Description

Vacuum Fluid and Air Pressure Sensor, Range 0 to -14.5 psi, Control Output PNP, Programmable On/Off Setting, Power Required 24V DC, Process Connection 1/4 in NPT, Electrical Connection 4 Pin M12, Display 4 Digit LED, Wetted Materials Ceramic, Fluorocarbon, Stainless Steel, Housing Material Polyacrylamide, Stainless Steel, Operating Temp. Range - 4 Degrees to 176 Degrees F, IP Rating IP65, IP67, Max. Pressure 43.5 psi, Standards CE, CSA, cULus, EU RoHS, UL Listed, UL 50, UL 508
