  13. Vacuum Switch, Standard, 1NO/1NC, 0 to 28.7 in Hg Range

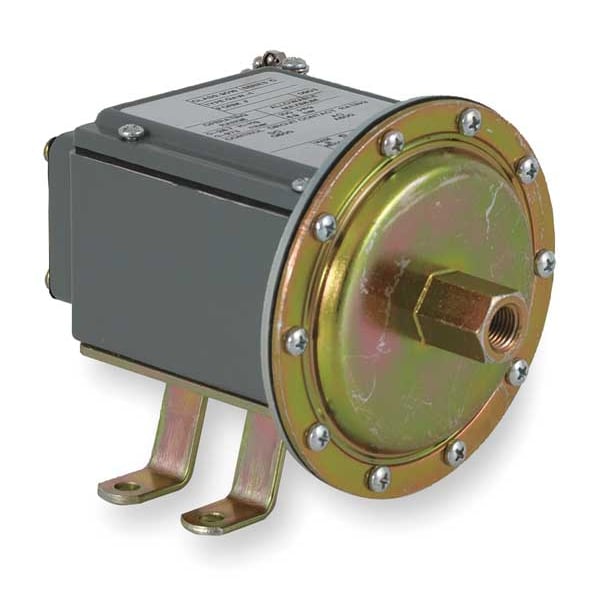

Telemecanique Sensors Vacuum Switch, Standard, 1NO/1NC, 0 to 28.7 in Hg Range 9016GAW1F - main

Vacuum Switch, Standard, 1NO/1NC, 0 to 28.7 in Hg Range

  • Mfr # 9016GAW1F

  • Zoro # G2914877

product price: $383.32
/ea
Free Shipping & Returns

Key Features

Contact Form
1NO/1NC
Differential
0.8 to 9 in Hg
NEMA Rating
13, 4, 4X
Port Type
1-Port 1/4-18 in FNPT
Range
0 to 28.7 in Hg
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9016GAW1F
Zoro #
G2914877
UPC #
785901053781
Country of Origin
Mexico

Dimensions

Overall Depth
4.9 in
Overall Height
6.45 in
Manufacturer Warranty Length
18 mo
Overall Width
4.56 in
Depth
4.9 in
Width
4.56 in
Height
6.45 in
Vacuum Sensor Size
28.7 inHg

Details

Item
Vacuum Switch
Contact Form
1NO/1NC
Differential
0.8 to 9 in Hg
NEMA Rating
13, 4, 4X
Port Type
1-Port 1/4-18 in FNPT
Range
0 to 28.7 in Hg
Series
9016G
Action
Standard
Ambient Temp. Range
-10 Degrees to 185 Degrees F
Media Temp. Range
-14 Degrees to 250 Degrees F
Features
(2) Thresholds, Adjustable Scale, Electromechanical
Electrical Connection
screw-clamp terminals AWG 22...AWG 12
Standards
UL 508
Pressure - Maximum
100 psi
Differential Pressure - Maximum
3.63 psi
Media Temperature - Minimum
-40 Degrees F
Differential Pressure - Minimum
0.64 psi
Operating Temperature - Minimum
10 Degrees F
Pressure Connection Type
1/4-18" FNPT
NEMA Enclosure Rating
13, 4, 4X
Number of Pressure Connection Ports
1
Operating Temperature - Maximum
185 Degrees F
Media Temperature - Maximum
250 Degrees F
Line Rated Current
3 A 240 V AC A600 NEMA rating designation || 6 A 120 V AC A600 NEMA rating designation || 0.27 A 250 V DC R300 NEMA rating designation || 0.22 A 125 V DC R300 NEMA rating designation
Repeat Accuracy
0.004
Ambient Air Temperature For Operation
10-185°F
Mechanical Durability
5000000 cycles
Ambient Air Temperature For Storage
10-185°F
Short-Circuit Protection
10 A cartridge overload and short-circuit protection gL
Device Short Name
9016G
Device Application
sensitive control application
Product Certifications
CSA file LR25490 || UL listed file E12158 CCN NKPZ and CCN NTHT
Cable Entry
0.5 inch NPT conduit entrance
Approx Adjustable Differential At Mid Range
1.3-7.4 inHg
Shock Resistance
50 gn IEC 58-2-27
Operating Position
any position
Vibration Resistance
2 gn 40-150 Hz)IEC 68-2-6
Nema Degree Of Protection
NEMA 4/4X/13 UL 698
Materials In Contact With Fluid
3M Scotch-Grip 847 rubber and gasket adhesive || nitrile (Buna-N) || zinc plated steel
Electrical Circuit Type
control circuit
Local Signalling
without
Fluid Connection Type
0.25 inch 18 NPTF UL 508
Range On Decreasing Vacuum
0-28.7 inHg
Factory Modification
with mounting bracket
Enclosure Material
die cast aluminium alloy 380
Maximum Pressure
100 psi
Controlled Fluid
air -40-250°F) || water -40-250°F) || hydraulic oil -40-250°F) || gas -40-250°F)
Contacts Type And Composition
NC-NO, SPDT, Form Z, snap action, silver nickel contacts
Maximum Operating Rate
120 cyc/mn
Setting
internal
Local Display
without
Product Or Component Type
electromechanical vacuum switch
Scale Type
adjustable differential
Vacuum Switch Type Of Operation
regulation between two thresholds
Terminal Block Type
4 screw terminals
Pressure Actuator
diaphragm nitrile (Buna-N)

Description

Vacuum Switch, Range 0 to 28.7 in Hg, Contact Form 1NO/1NC, Port Type 1-Port 1/4-18 in FNPT, NEMA Rating 13, 4, 4X, Action Standard, Differential 0.8 to 9 in Hg, 9016G Series, Ambient Temp. Range -10 Degrees to 185 Degrees F, Media Temp. Range -14 Degrees to 250 Degrees F, Features (2) Thresholds, Adjustable Scale, Electromechanical
