  13. Vacuum Switch, Standard, DPDT, 0 to 28.3 in Hg Range

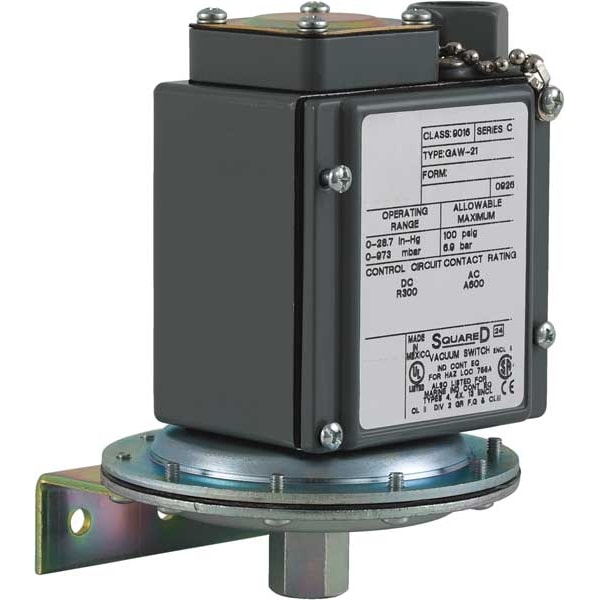

Telemecanique Sensors Vacuum Switch, Standard, DPDT, 0 to 28.3 in Hg Range 9016GAW21 - main

Vacuum Switch, Standard, DPDT, 0 to 28.3 in Hg Range

  • Mfr # 9016GAW21

  • Zoro # G0582705

product price: $377.99
/ea
Free Shipping & Returns

Key Features

Contact Form
DPDT
Differential
0.8 to 9 in Hg
NEMA Rating
13, 4, 4X
Port Type
1-Port 1/4-18 in FNPT
Range
0 to 28.3 in Hg
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9016GAW21
Zoro #
G0582705
UPC #
785901522904
Country of Origin
Mexico

Dimensions

Overall Width
4.56 in
Overall Height
6.45 in
Overall Depth
4.56 in
Manufacturer Warranty Length
18 mo
Depth
4.56 in
Vacuum Sensor Size
28.3 inHg
Width
4.56 in
Height
6.45 in

Details

Item
Vacuum Switch
Contact Form
DPDT
Differential
0.8 to 9 in Hg
NEMA Rating
13, 4, 4X
Port Type
1-Port 1/4-18 in FNPT
Range
0 to 28.3 in Hg
Series
9016G
Action
Standard
Ambient Temp. Range
-10 Degrees to 185 Degrees F
Media Temp. Range
-14 Degrees to 250 Degrees F
Standards
UL 508
Features
(2) Thresholds, Adjustable Scale, Electromechanical
Electrical Connection
screw-clamp terminals AWG 22...AWG 12
Media Temperature - Minimum
-40 Degrees F
Pressure Connection Type
1/4-18" NPTF
Pressure - Maximum
100 psi
Differential Pressure - Minimum
0.83 psi
Media Temperature - Maximum
250 Degrees F
Number of Pressure Connection Ports
1
Operating Temperature - Maximum
185 Degrees F
Operating Temperature - Minimum
10 Degrees F
NEMA Enclosure Rating
13, 4, 4X
Differential Pressure - Maximum
3.63 psi
Local Signalling
without
Pressure Actuator
diaphragm nitrile (Buna-N)
Materials In Contact With Fluid
3M Scotch-Grip 847 rubber and gasket adhesive || zinc plated steel || nitrile (Buna-N)
Vibration Resistance
2 gn 40-150 Hz)IEC 68-2-6
Product Or Component Type
electromechanical vacuum switch
Operating Position
any position
Shock Resistance
50 gn IEC 58-2-27
Scale Type
adjustable differential
Fluid Connection Type
0.25 inch 18 NPTF UL 508
Terminal Block Type
8 screw terminals
Device Application
sensitive control application
Mechanical Durability
5000000 cycles
Product Certifications
UL listed file E12158 CCN NKPZ and CCN NTHT || CSA file LR25490
Local Display
without
Ambient Air Temperature For Storage
10-185°F
Maximum Pressure
100 psi
Electrical Circuit Type
control circuit
Line Rated Current
3 A 240 V AC A600 NEMA rating designation || 6 A 120 V AC A600 NEMA rating designation || 0.22 A 125 V DC R300 NEMA rating designation || 0.11 A 250 V DC R300 NEMA rating designation
Cable Entry
0.5 inch NPT conduit entrance
Setting
internal
Ambient Air Temperature For Operation
10-185°F
Repeat Accuracy
0.004
Vacuum Switch Type Of Operation
regulation between two thresholds
Contacts Type And Composition
2(NC-NO), DPDT, Form ZZ, snap action, silver nickel contacts
Approx Adjustable Differential At Mid Range
1.7-7.4 inHg
Nema Degree Of Protection
NEMA 4/4X/13 UL 698
Controlled Fluid
air -40-250°F) || water -40-250°F) || hydraulic oil -40-250°F) || gas -40-250°F)
Device Short Name
9016G
Range On Decreasing Vacuum
0-28.3 inHg
Maximum Operating Rate
120 cyc/mn
Enclosure Material
die cast aluminium alloy 380
Short-Circuit Protection
10 A cartridge overload and short-circuit protection gL

Description

Vacuum Switch, Range 0 to 28.3 in Hg, Contact Form DPDT, Port Type 1-Port 1/4-18 in FNPT, NEMA Rating 13, 4, 4X, Action Standard, Differential 0.8 to 9 in Hg, 9016G Series, Ambient Temp. Range -10 Degrees to 185 Degrees F, Media Temp. Range -14 Degrees to 250 Degrees F, Features (2) Thresholds, Adjustable Scale, Electromechanical
