  7. Vacuum Switch, Standard, DPST, 0 to 25 in Hg Range

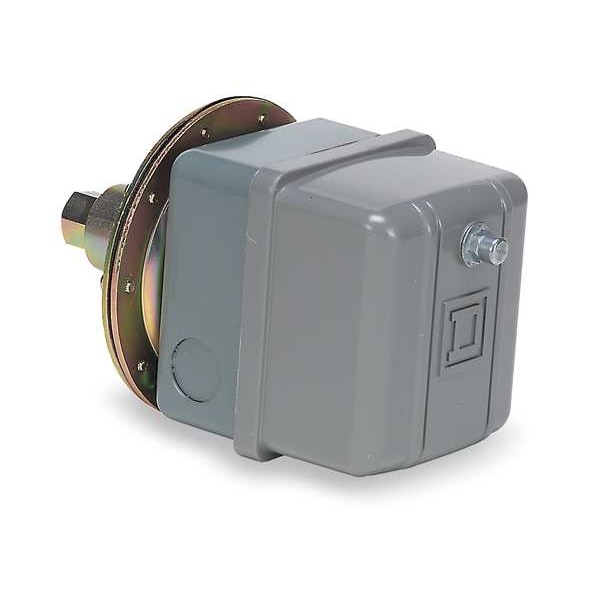

Telemecanique Sensors Vacuum Switch, Standard, DPST, 0 to 25 in Hg Range 9016GVG1J09 - main

Vacuum Switch, Standard, DPST, 0 to 25 in Hg Range

  • Mfr # 9016GVG1J09

  • Zoro # G2111663

product price:  $172.99
/ea
Free Shipping & Returns

Key Features

Contact Form
DPST
Differential
5 to 10 in Hg
NEMA Rating
1
Port Type
1-Port 1/4-18 in FNPS
Range
0 to 25 in Hg
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
9016GVG1J09
Zoro #
G2111663
UPC #
785901569060
Country of Origin
Mexico

Dimensions

Manufacturer Warranty Length
18 mo
Overall Width
4.58 in
Overall Depth
4.37 in
Overall Height
7.13 in
Vacuum Sensor Size
25 inHg
Depth
4.37 in
Height
7.13 in
Width
4.58 in

Details

Item
Vacuum Switch
Contact Form
DPST
Differential
5 to 10 in Hg
NEMA Rating
1
Port Type
1-Port 1/4-18 in FNPS
Range
0 to 25 in Hg
Series
9016GVG
Action
Standard
Ambient Temp. Range
-10 Degrees to 185 Degrees F
Media Temp. Range
-14 Degrees to 250 Degrees F
Standards
UL 508
Electrical Connection
screw-clamp terminals AWG 22...AWG 12
Features
(2) Thresholds, Adjustable Scale, Electromechanical
Number of Pressure Connection Ports
1
Operating Temperature - Maximum
185 Degrees F
Operating Temperature - Minimum
10 Degrees F
Pressure Connection Type
1/2" NPT
Pressure - Maximum
100 psi
Media Temperature - Minimum
-40 Degrees F
NEMA Enclosure Rating
1
Differential Pressure - Maximum
4.91 psi
Media Temperature - Maximum
250 Degrees F
Differential Pressure - Minimum
2.46 psi
Cut-In Range
0-20 inHg
Electrical Circuit Type
power circuit
Pressure Actuator
diaphragm nitrile (Buna-N)
Contacts Type And Composition
2 NC, DPST-DB, Form YY, snap action, silver cadmium contacts
Motor Power Kw
1.5 kW 2 hp)115 V AC, 1 phase || 2.2 kW 3 hp)115 V AC, 3 phase || 2.2 kW 3 hp)230 V AC, 1 phase || 3.75 kW 5 hp)230 V AC, 3 phase || 3.7 kW 5 hp)460 V AC, 1 phase || 3.7 kW 5 hp)460 V AC, 3 phase || 3.7 kW 5 hp)575 V AC, 1 phase || 3.7 kW 5 hp)575 V AC, 3 phase || 0.75 kW 1 hp)115 V DC, 3 phase || 0.75 kW 1 hp)230 V DC
Cut Out Range
5-25 inHg
Repeat Accuracy
0.025
Vacuum Switch Type Of Operation
regulation between two thresholds
Cable Entry Number
3 knock-outs for 1/2" NPT conduit
Nema Degree Of Protection
NEMA 1 UL 698
Fluid Connection Type
0.25 inch 18 NPSF UL 508
Ambient Air Temperature For Operation
10-185°F
Local Display
without
Value Of Setting
3...8 inHg
Product Certifications
CSA file LR25490 || UL listed file E12158 CCN NKPZ
Short-Circuit Protection
20 A cartridge fuse gG
Ambient Air Temperature For Storage
10-185°F
Mechanical Durability
300 cycles
Device Application
power circuit application
Scale Type
adjustable
Cover Material
polypropylene, noryl thermoplastic resin or equivalent
Terminal Block Type
8 screw terminals
Materials In Contact With Fluid
zinc plated steel || 3M Scotch-Grip 847 rubber and gasket adhesive || nitrile (Buna-N)
Approx Adjustable Differential At Mid Range
5-10 inHg
Enclosure Material
stamped metal
Maximum Pressure
100 psi
Controlled Fluid
air -40-250°F) || water -40-250°F) || hydraulic oil -40-250°F) || gas -40-250°F)
Setting
internal
Maximum Operating Rate
100 cyc/mn
Operating Position
any position
Device Short Name
9016GVG
Product Or Component Type
electromechanical vacuum switch

Description

Vacuum Switch, Range 0 to 25 in Hg, Contact Form DPST, Port Type 1-Port 1/4-18 in FNPS, NEMA Rating 1, Action Standard, Differential 5 to 10 in Hg, 9016GVG Series, Ambient Temp. Range -10 Degrees to 185 Degrees F, Media Temp. Range -14 Degrees to 250 Degrees F, Features (2) Thresholds, Adjustable Scale, Electromechanical
