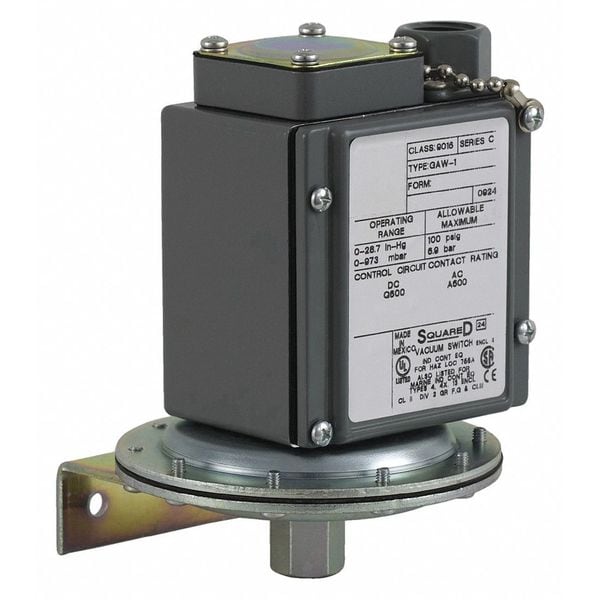

Vacuum Switch, Standard, SPDT-1NO/1NC, 0 to 28.7 in Hg Range

  • Mfr # 9016GAW1

  • Zoro # G2059285

product price:  $373.99
/ea
Free Shipping & Returns

Key Features

Contact Form
SPDT-1NO/1NC
Differential
0.8 to 9 in Hg
NEMA Rating
13, 4, 4X
Port Type
1-Port 1/4-18 in FNPT
Range
0 to 28.7 in Hg
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
9016GAW1
Zoro #
G2059285
UPC #
785901025283
Country of Origin
Mexico

Dimensions

Overall Height
6.45 in
Overall Width
4.56 in
Overall Depth
4.56 in
Manufacturer Warranty Length
18 mo
Height
6.45 in
Width
4.56 in
Vacuum Sensor Size
28.7 inHg
Depth
4.56 in

Details

Item
Vacuum Switch
Contact Form
SPDT-1NO/1NC
Differential
0.8 to 9 in Hg
NEMA Rating
13, 4, 4X
Port Type
1-Port 1/4-18 in FNPT
Range
0 to 28.7 in Hg
Series
9016G
Action
Standard
Ambient Temp. Range
-10 Degrees to 185 Degrees F
Media Temp. Range
-14 Degrees to 250 Degrees F
Features
(2) Thresholds, Adjustable Scale, Electromechanical
Standards
UL 508
Electrical Connection
screw-clamp terminals AWG 22...AWG 12
Pressure Connection Type
1/4-18" NPTF
Differential Pressure - Minimum
0.64 psi
Media Temperature - Maximum
250 Degrees F
Pressure - Maximum
100 psi
Operating Temperature - Minimum
10 Degrees F
Operating Temperature - Maximum
185 Degrees F
Differential Pressure - Maximum
4.42 psi
Number of Pressure Connection Ports
1
NEMA Enclosure Rating
13, 4, 4X
Media Temperature - Minimum
-40 Degrees F
Cable Entry
0.5 inch NPT conduit entrance
Contacts Type And Composition
NC-NO, SPDT, Form Z, snap action, silver nickel contacts
Range On Decreasing Vacuum
0-28.7 inHg
Ambient Air Temperature For Storage
10-185°F
Vacuum Switch Type Of Operation
regulation between two thresholds
Product Or Component Type
electromechanical vacuum switch
Product Certifications
UL listed file E12158 CCN NKPZ and CCN NTHT || CSA file LR25490
Maximum Operating Rate
120 cyc/mn
Scale Type
adjustable differential
Enclosure Material
die cast aluminium alloy 380
Ambient Air Temperature For Operation
10-185°F
Fluid Connection Type
0.25 inch 18 NPTF UL 508
Mechanical Durability
5000000 cycles
Electrical Circuit Type
control circuit
Terminal Block Type
4 screw terminals
Shock Resistance
50 gn IEC 58-2-27
Repeat Accuracy
0.004
Approx Adjustable Differential At Mid Range
1.3-7.4 inHg
Materials In Contact With Fluid
3M Scotch-Grip 847 rubber and gasket adhesive || zinc plated steel || nitrile (Buna-N)
Short-Circuit Protection
10 A cartridge overload and short-circuit protection gL
Pressure Actuator
diaphragm nitrile (Buna-N)
Setting
internal
Vibration Resistance
2 gn 40-150 Hz)IEC 68-2-6
Device Application
sensitive control application
Local Signalling
without
Device Short Name
9016G
Controlled Fluid
air -40-250°F) || water -40-250°F) || hydraulic oil -40-250°F) || gas -40-250°F)
Operating Position
any position
Line Rated Current
3 A 240 V AC A600 NEMA rating designation || 6 A 120 V AC A600 NEMA rating designation || 0.27 A 250 V DC R300 NEMA rating designation || 0.22 A 125 V DC R300 NEMA rating designation
Local Display
without
Maximum Pressure
100 psi
Nema Degree Of Protection
NEMA 4/4X/13 UL 698

Description

Vacuum Switch, Range 0 to 28.7 in Hg, Contact Form SPDT-1NO/1NC, Port Type 1-Port 1/4-18 in FNPT, NEMA Rating 13, 4, 4X, Action Standard, Differential 0.8 to 9 in Hg, 9016G Series, Ambient Temp. Range -10 Degrees to 185 Degrees F, Media Temp. Range -14 Degrees to 250 Degrees F, Features (2) Thresholds, Adjustable Scale, Electromechanical
