- MFR #
- 9016GVG1J12
- Zoro #
- G1365533
- UPC #
- 785901053910
- Country of Origin
- Mexico

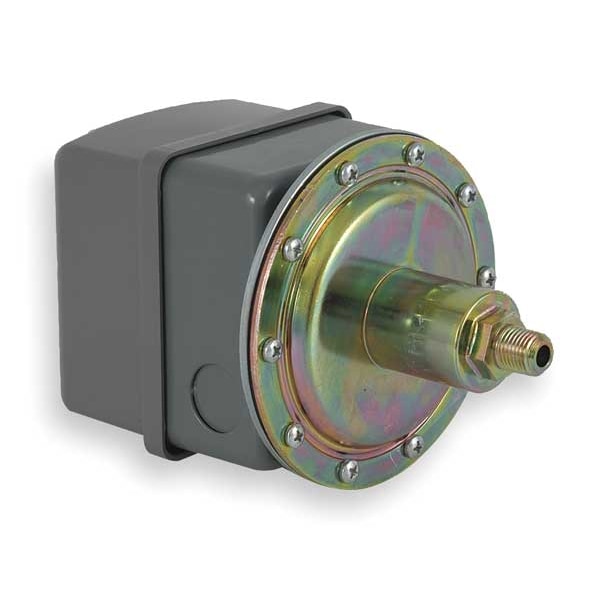

- Item
- Vacuum Switch
- Contact Form
- DPST
- Differential
- 5 to 10 in Hg
- NEMA Rating
- 1
- Port Type
- 1-Port 1/4-18 in FNPS
- Range
- 5 to 25 in Hg
- Series
- 9016GVG
- Action
- Standard
- Ambient Temp. Range
- -10 Degrees to 185 Degrees F
- Media Temp. Range
- -14 Degrees to 250 Degrees F
- Electrical Connection
- screw-clamp terminals AWG 22...AWG 12
- Standards
- UL 508
- Features
- (2) Thresholds, Adjustable Scale, Electromechanical
- Differential Pressure - Minimum
- 2.46 psi
- Operating Temperature - Minimum
- -10 Degrees F
- Media Temperature - Minimum
- -40 Degrees F
- Media Temperature - Maximum
- 250 Degrees F
- Pressure - Maximum
- 100 psi
- Operating Temperature - Maximum
- 185 Degrees F
- NEMA Enclosure Rating
- 1
- Differential Pressure - Maximum
- 4.91 psi
- Pressure Connection Type
- 1/4" FNPT
- Number of Pressure Connection Ports
- 1
- Device Short Name
- 9016GVG
- Value Of Setting
- 18...23 inHg
- Product Certifications
- UL listed file E12158 CCN NKPZ || CSA file LR25490
- Repeat Accuracy
- 0.025
- Device Application
- power circuit application
- Contacts Type And Composition
- 2 NC, DPST-DB, Form YY, snap action, silver cadmium contacts
- Maximum Pressure
- 100 psi
- Scale Type
- adjustable
- Product Or Component Type
- electromechanical vacuum switch
- Ambient Air Temperature For Operation
- 10-185°F
- Nema Degree Of Protection
- NEMA 1 UL 698
- Setting
- internal
- Operating Position
- any position
- Controlled Fluid
- air -40-250°F) || water -40-250°F) || hydraulic oil -40-250°F) || gas -40-250°F)
- Approx Adjustable Differential At Mid Range
- 5-10 inHg
- Fluid Connection Type
- 0.25 inch 18 NPSF UL 508
- Short-Circuit Protection
- 20 A cartridge fuse gG
- Cover Material
- polypropylene, noryl thermoplastic resin or equivalent
- Vacuum Switch Type Of Operation
- regulation between two thresholds
- Enclosure Material
- stamped metal
- Maximum Operating Rate
- 100 cyc/mn
- Cable Entry Number
- 3 knock-outs for 1/2" NPT conduit
- Cut Out Range
- 5-25 inHg
- Electrical Circuit Type
- power circuit
- Materials In Contact With Fluid
- zinc plated steel || 3M Scotch-Grip 847 rubber and gasket adhesive || nitrile (Buna-N)
- Pressure Actuator
- diaphragm nitrile (Buna-N)
- Terminal Block Type
- 8 screw terminals
- Cut-In Range
- 0-20 inHg
- Mechanical Durability
- 300 cycles
- Local Display
- without
- Motor Power Kw
1.5 kW 2 hp)115 V AC, 1 phase || 2.2 kW 3 hp)115 V AC, 3 phase || 2.2 kW 3 hp)230 V AC, 1 phase || 3.75 kW 5 hp)230 V AC, 3 phase || 3.7 kW 5 hp)460 V AC, 1 phase || 3.7 kW 5 hp)460 V AC, 3 phase || 3.7 kW 5 hp)575 V AC, 1 phase || 3.7 kW 5 hp)575 V AC, 3 phase || 0.75 kW 1 hp)115 V DC, 3 phase || 0.75 kW 1 hp)230 V DC
- Ambient Air Temperature For Storage
- 10-185°F
- Pressure - Minimum
- 8.84 psi
- Switch Structure
- DPST
