  11. Virtu Sensor Ultrasonic Proximity

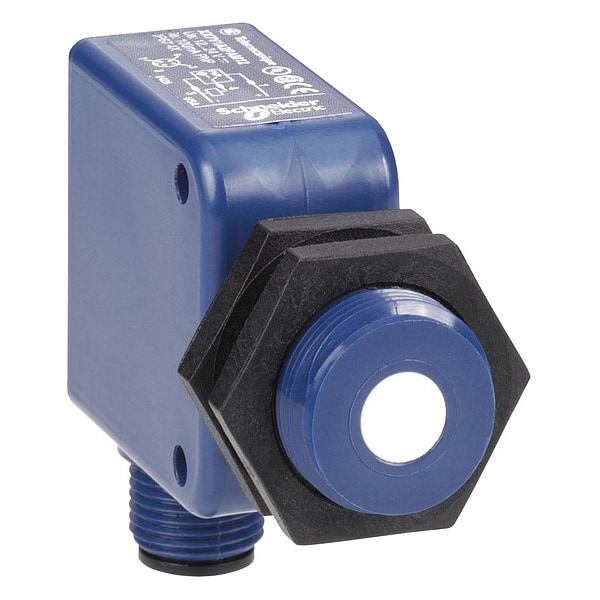

Telemecanique Sensors Virtu Sensor Ultrasonic Proximity VM1PNCQ - main

Virtu Sensor Ultrasonic Proximity

  • Mfr # VM1PNCQ

  • Zoro # G0671758

product price: $145.99
/ea
Free Shipping & Returns

Key Features

Width
18 mm
Material
plastic
Standards
EN 60947
Height
43.7 mm
Enclosure Material
valox
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
VM1PNCQ
Zoro #
G0671758
UPC #
785901797975
Country of Origin
United States

Dimensions

Width
18 mm
Height
43.7 mm
Depth
43.7 mm
Minimum Size Of Detected Object
cylinder diameter 2.5 mm - up to 200 mm sensing distance
Length
59.69 mm

Details

Item
Virtu Sensor Ultrasonic Proximity
Material
plastic
Standards
EN 60947
Enclosure Material
valox
Beam Angle
5°
Current Consumption
40 mA
Discrete Output Type
PNP
Type Of Sensing Window
adjustable
[Sa] Assured Operating Distance
50.8-508 mm remote teach push-button
Discrete Output Function
1 NC
[Us] Rated Supply Voltage
12...24 V DC overload and short-circuit protection
Blind Zone
0-51 mm
Relative Humidity
100-100 % without condensation
Transmission Frequency
300 kHz
Vibration Resistance
+/-1 mm 10-55 Hz)IEC 60068-2-6
Ip Degree Of Protection
IP67
Sensor Type
ultrasonic sensor
Product Certifications
UL
Supply Voltage Limits
10-28 V DC
Resistance To Electrostatic Discharge
8 kV level 4 IEC 61000-4-2
Shock Resistance
30 gn in all 3 axes 11 ms IEC 60068-2-27
Repeat Accuracy
0.0127
Wiring Technique
4-wire
[Sd] Sensing Range
50.8-508 mm
Ambient Air Temperature For Operation
-30-70°C
Ambient Air Temperature For Storage
-40-85°C
Resistance To Electromagnetic Fields
10 V/m level 3 IEC 61000-4-3
Electrical Connection
male connector M12 4 pins
Marking
CE
Front Material
glass epoxy
Maximum Switching Current
100 mA reverse polarity protection
Status Led
output not active 1 LED green)
Series Name
Virtu VM1
Device Short Name
VM1
[Sn] Nominal Sensing Distance
508-508 mm
Nema Degree Of Protection
NEMA 4X indoor use only)
Type Of Output Signal
discrete
Resistance To Fast Transients
1 kV level 3 IEC 61000-4-4
Sensor Design
flat form + cylindrical M18

Description

Virtu Sensor Ultrasonic Proximity

Restrictions
