  15. WirelessLimitSwitch, RollerLeverPlunger

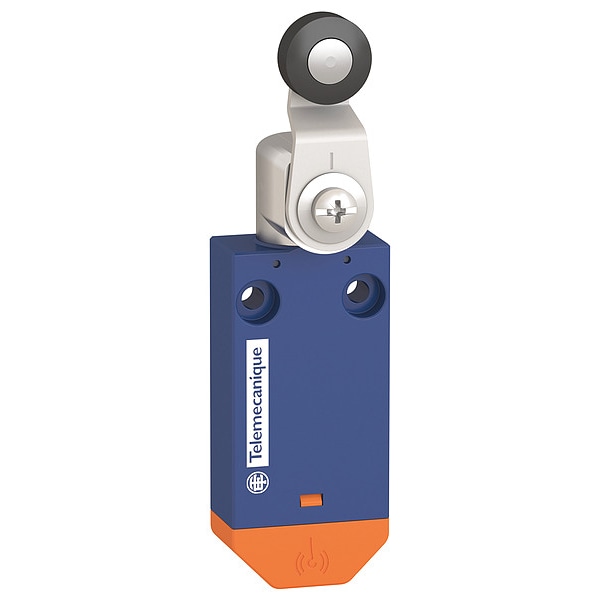

Telemecanique Sensors WirelessLimitSwitch, RollerLeverPlunger XCMW115 - main

WirelessLimitSwitch, RollerLeverPlunger

  • Mfr # XCMW115

  • Zoro # G0195720

product price: $304.99
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
Roller Lever, Rotary
Actuator Length
1.35 in
Depth
0.63 in
Actuator Style
Roller Lever Plunger
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XCMW115
Zoro #
G0195720
UPC #
-
Country of Origin
France

Dimensions

Actuator Length
1.35 in
Depth
0.63 in
Height
4.25 in
Arm Length
34.4 mm
Body Height - Limit Switch
108 mm
Width
1.18 in
Roller Dia.
0.63 in
Body Depth - Limit Switch
16.0 mm
Roller Width
0.22 in
Overall Height
4.25 in
Roller Diameter
0.63 in
Overall Depth
0.63 in
Arm Length - Maximum
1.35 in
Body Height
4.25 in
Body Width
1.18 in
Body Depth
0.62 in
Overall Width
1.18 in

Details

Item
Wireless Limit Switch
Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
Roller Lever, Rotary
Actuator Style
Roller Lever Plunger
Arm Material
Metal
Standards
EN/IEC 60947-1, EN/IEC 60947-5-1
Style
Wireless Limit Switch
On Sensing Distance
100 m in free field || 300 m with external antenna || 25 m in industrial environment
Wireless Range
IEEE 802.15.4
Operating Temp. Range
-13 Degrees F to 131 Degrees F
Series
XCMW
Features
Circularity Profile, EU RoHS Directive, Green Premium Product, Mercury Free, RoHS Exemption Information
Roller Material
Thermoplastic
Body Style (Limit Switch)
fixed
Special Features
lateral approach, 2 directions
Body Material
Plastic
IP Rating
65
Head Material
metal
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Weight
0.082 kg
Vibration Resistance
25 gn 10-500 Hz)IEC 60068-2-6 || +/- 10 mm 2-11 Hz)IEC 60068-2-6
Head Type
rotary head
Mechanical Durability
400000 cycles
Contact Action
snap action
Min. Actuation Velocity Horizontal
0.1 m/s
Actuation Type
by 30° cam
Wireless Network Interface
IEEE 802.15.4
Operating Temperature - Minimum
-13 Degrees F
Operating Torque - Maximum
4.43 in-lb
Operating Temperature - Maximum
158 Degrees F
Type Of Operator
spring return roller lever thermoplastic

Description

Wireless Limit Switch, IP Rating IP65
