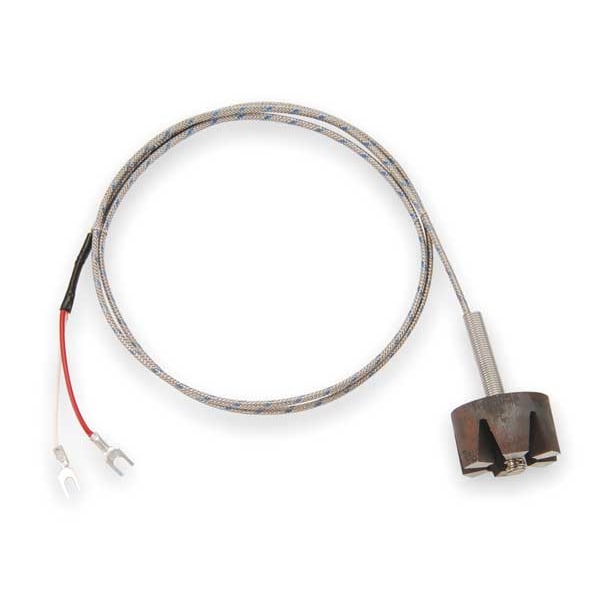

Tempco Magnet Thermocouple, Spade Lugs, Type K TMW00020 - main

Magnet Thermocouple, Spade Lugs, Type K

  • Mfr # TMW00020

  • Zoro # G2502604

product price: $163.99
/ea
Free Shipping & Returns

Key Features

Grounded / Ungrounded
Grounded
Plug or Connector Type
Fork Terminal
Thermocouple Type
Type K
Material
304 Stainless Steel
Error Accuracy (Deg. C)
+/-2.2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TMW00020
Zoro #
G2502604
UPC #
-
Country of Origin
United States

Dimensions

Lead Length
12 ft
Probe Length
1.25 in
Probe Size
1 1/4 in
Opening/Diameter
1 1/4 in dia Magnet
Cable Length
12 ft

Details

Item
Magnet Thermocouple
Grounded / Ungrounded
Grounded
Plug or Connector Type
Fork Terminal
Thermocouple Type
Type K
Material
304 Stainless Steel
Error Accuracy (Deg. C)
+/-2.2
Thermocouple Element
20 AWG
Insulation
PTFE
Temp. Limit (Deg. F)
752
Construction
Spring-loaded thermocouple Attached to 6-pole Magnet
Error Accuracy (%)
+/-0.75
Connector Type
Spade Lugs
For Liquids and Gels
No
Maximum Temperature F
2,300 Degrees F
For Application
Appliances, Duct, Food and Beverage, HVAC, Ovens, Packaging, Pharmaceutical
Maximum Wire Gauge
0.25 mm
For Surfaces
Yes
Maximum Temperature C
1,260 Degrees C
Includes Thermowell
No
Temperature Range
32 Degrees to 2,300 Degrees F/0 Degrees to 1,260 Degrees C
Process Mounting
Surface Mount Magnet
Junction Type
Grounded
For Solids
Yes
Probe Sheath Material
304 Stainless Steel
Sensor Type
Thermocouple
For Air
No
Minimum Temperature C
0 Degrees C
Cable Material
FEP Teflon with Stainless Steel Braid
Minimum Temperature F
32 Degrees F
Accuracy
+/-2.2 Degrees C or +/-0.75%
For Gases
No
Maximum Temperature °C
1,260 Degrees C
Maximum Temperature °F
2,300 Degrees F
Minimum Temperature °F
32 Degrees F
Minimum Temperature °C
0 Degrees C
Maximum Temperature °C
1,260 Degrees C
Maximum Temperature °F
2,300 Degrees F
Minimum Temperature °C
0 Degrees C
Minimum Temperature °F
32 Degrees F

Description

Magnet Thermocouple, Type K, Grounded, For Application Appliances, Duct, Food and Beverage, HVAC, Ovens, Packaging, Pharmaceutical, Surface Mount Magnet, Spade Lugs, Probe Size 1 1/4 in, Cable Length 12 ft, 32 Degrees to 2,300 Degrees F/0 Degrees to 1,260 Degrees C, Thermocouple
