Shop TEMPCO

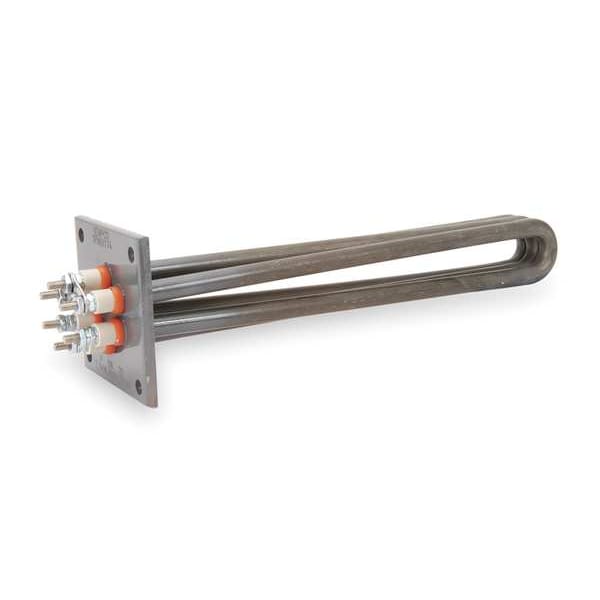

Nonpressure Rated Flanged Heater, 480V

  • Mfr # TPN01174

  • Zoro # G3423305

product price:  $303.99
/ea
Free Shipping & Returns

Key Features

Phase
3
Heater Voltage
480V AC
Watts
2,500 W
Watt Density
25.85 W/sq in
Overall Length
13 15/16 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
TPN01174
Zoro #
G3423305
UPC #
-
Country of Origin
United States

Dimensions

Overall Length
13 15/16 in
Flange Size
3 1/2 in
Min. Immersion Depth
12 7/16 in
Height
3 1/2 in
Heating Element Width
2 1/16 in
Heating Element Length
12 7/16 in
Wire Rope Length
13 15/16 in

Details

Phase
3
Heater Voltage
480V AC
Watts
2,500 W
Watt Density
25.85 W/sq in
Sheath Material
Incoloy(R) 800
Item
Flanged Heater
Includes
Gasket
Flange Material
Steel
Special Information
Tubular Heating Elements Silver Brazed or Tig Welded to a Flange Cut from Steel or Stainless Steel Plate
For Use With
Air Heating, Dehumidifying Dryers, Heat Exchange Systems, Hot Air Dryers, Steam Table
Type
Flange Heater Non Pressure Rated
Product Type
Immersion Heater
Heater Mounting Type
Flange
Temperature Output - Maximum
257 Degrees F
Heating Element Material
Incoloy(R) 800

Description

Flanged Heater, 2,500 W Watts, Sheath Material Incoloy(R) 800, Watt Density 25.85 W/sq in, Flange Size 3 1/2 in, Heater Voltage 480V AC, 3 Phase, Overall Length 13 15/16 in, Min. Immersion Depth 12 7/16 in, Height 3 1/2 in, Flange Material Steel, Special Information Tubular Heating Elements Silver Brazed or Tig Welded to a Flange Cut from Steel or Stainless Steel Plate, For Use With Air Heating, Dehumidifying Dryers, Heat Exchange Systems, Hot Air Dryers, Steam Table, Includes Gasket
