  13. RTD Probe, 100 Ohm, Length 6 In, 1112 F
Tempco RTD Probe, 100 Ohm, Length 6 In, 1112 F RTD00601 - main

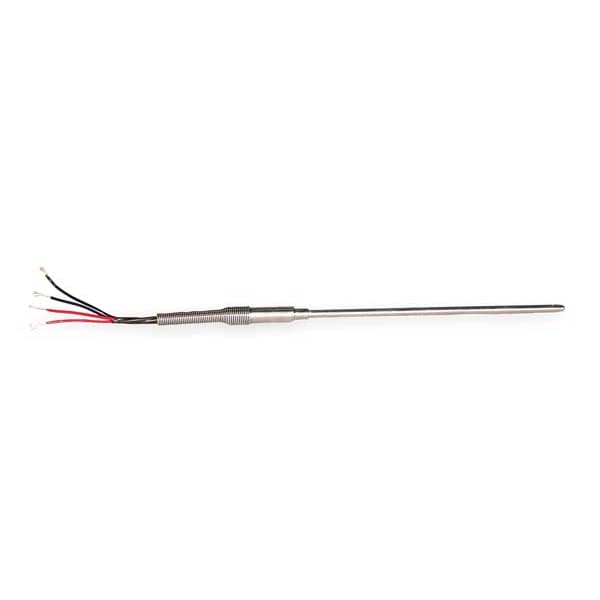

RTD Probe, 100 Ohm, Length 6 In, 1112 F

  • Mfr # RTD00601

  • Zoro # G3132464

product price: $94.39
/ea
Free Shipping & Returns

Key Features

Probe Length
6 in
Probe Temp. Measuring Element
RTD
Probe Contact Material
Stainless Steel
Probe Connection Type
Bare Wire
Probe Wire Length
6 ft
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
RTD00601
Zoro #
G3132464
UPC #
094705267943
Country of Origin
United States

Dimensions

Probe Length
6 in
Probe Wire Length
6 ft
Probe Size
3/16 in x 6 in
Probe Diameter
0.188 in
Cable Length
6 ft

Details

Item
Temperature probe
Probe Temp. Measuring Element
RTD
Probe Contact Material
Stainless Steel
Probe Connection Type
Bare Wire
Temp. Range (F)
0 Degrees to 1200 Degrees
Primary Measuring Element
RTD
Temp. Range (C)
-18 Degrees to 650 Degrees
Resistance
100 ohm
Includes Thermowell
No
For Gases
Yes
For Liquids and Gels
Yes
Accuracy
+/-0.30 Degrees C/ +/-0.12 ohm at 0 Degrees C
For Surfaces
No
Probe Bend
Straight
Minimum Temperature C
-18 Degrees C
Sensor Type
RTD
Temperature Range
0 Degrees to 1,200 Degrees F/-18 Degrees to 650 Degrees C
Maximum Temperature F
1,200 Degrees F
For Solids
Yes
Minimum Temperature F
0 Degrees F
Probe Sheath Material
316 Stainless Steel
Maximum Temperature C
650 Degrees C
Includes Signal Converter
No
RTD Type
3-Wire Pt100
For Application
Appliances, Duct, Food and Beverage, HVAC, Ovens, Packaging, Pharmaceutical
Number of Wires
3-Wire
Connector Type
Bare Wire
Cable Material
FEP
For Air
Yes
Minimum Temperature °F
0 Degrees F
Maximum Temperature °C
650 Degrees C
Minimum Temperature °C
-18 Degrees C
Maximum Temperature °F
1,200 Degrees F
Minimum Temperature °C
-18 Degrees C
Maximum Temperature °F
1,200 Degrees F
Minimum Temperature °F
0 Degrees F
Maximum Temperature °C
650 Degrees C

Description

Temperature Probe, RTD Type 3-Wire Pt100, For Application Appliances, Duct, Food and Beverage, HVAC, Ovens, Packaging, Pharmaceutical, Number of Wires 3-Wire, Bare Wire, Cable Material FEP, Cable Length 6 ft, 0 Degrees to 1,200 Degrees F/-18 Degrees to 650 Degrees C
