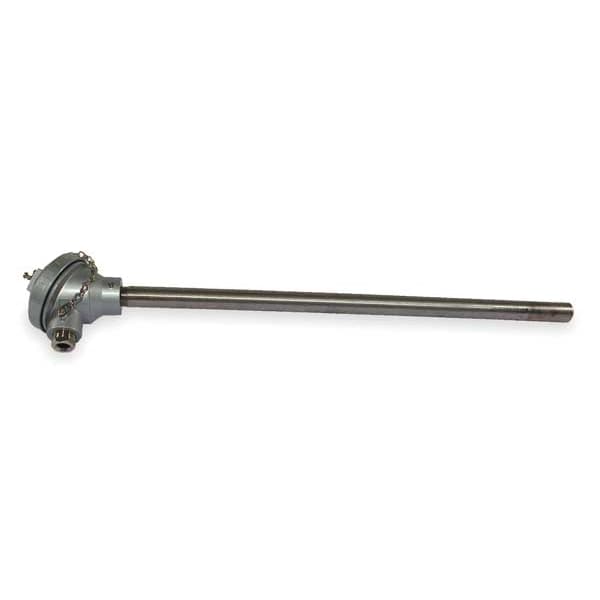

Shop TEMPCO

ThermocoupleProbe, TerminalBlock, TypeJ

  • Mfr # TCS00012
  • Zoro # G1229277
product price:
$
162.99
/ea
Free Shipping & Returns

Key Features

Grounded / Ungrounded
Grounded
Thermocouple Type
Type J
Temp. Limit (Deg. F)
1,300 Degrees F
Thermocouple Element
14 AWG
Probe Length
12 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
TCS00012
Zoro #
G1229277
UPC #
-
Country of Origin
United States

Dimensions

Probe Length
12 in
Pipe Size
1/2 in NPT
Sheath Size (In.)
0.84 in
Probe Tip Diameter
0.84 in
Probe Diameter
0.84 in
Probe Size
0.84 in x 12 in
Process Mounting Thread Size
1/2" MNPT

Details

Item
Heavy Duty Thermocouple
Grounded / Ungrounded
Grounded
Thermocouple Type
Type J
Temp. Limit (Deg. F)
1,300 Degrees F
Thermocouple Element
14 AWG
Material
304 Stainless Steel
Construction
Incased Pipe Protection With Aluminum Head
Error Accuracy (%)
+/-0.75
Insulation
Ceramic
Sensor Type
Thermocouple
Minimum Temperature F
32 Degrees F
For Surfaces
No
Junction Type
Grounded
For Application
Appliances, Duct, Food and Beverage, HVAC, Ovens, Packaging, Pharmaceutical
Probe Sheath Material
304 Stainless Steel
Maximum Temperature F
1,400 Degrees F
Head Material
Die Cast Aluminum
Maximum Wire Gauge
0.25 mm
For Liquids and Gels
Yes
Temperature Range
32 Degrees to 1,400 Degrees F/0 Degrees to 760 Degrees C
For Air
Yes
Minimum Temperature C
0 Degrees C
Tip Style
Rounded
Probe Bend
Straight
For Gases
Yes
For Solids
Yes
Connector Type
Terminal Block
Accuracy
+/-2.2 Degrees C or +/-0.75 %, Whichever is Greater
Includes Thermowell
No
Process Mounting
1/2 in MNPT
Maximum Temperature C
760 Degrees C
Maximum Temperature °C
760 Degrees C
Minimum Temperature °F
32 Degrees F
Maximum Temperature °F
1,400 Degrees F
Minimum Temperature °C
0 Degrees C
Maximum Temperature °C
760 Degrees C
Minimum Temperature °F
32 Degrees F
Minimum Temperature °C
0 Degrees C
Maximum Temperature °F
1,400 Degrees F
Process Mounting Connection
Thread
Maximum Temperature (°C)
760 Degrees C
For Media Type
Gases, Liquids and Gels, Solids
Maximum Temperature (°F)
1,400 Degrees F

Description

Heavy Duty Thermocouple, Type J, Grounded, For Application Appliances, Duct, Food and Beverage, HVAC, Ovens, Packaging, Pharmaceutical, 1/2 in MNPT, Terminal Block, Probe Size 0.84 in x 12 in, Cable Length Not Applicable, 32 Degrees to 1,400 Degrees F/0 Degrees to 760 Degrees C, Thermocouple
