Shop TEMPCO

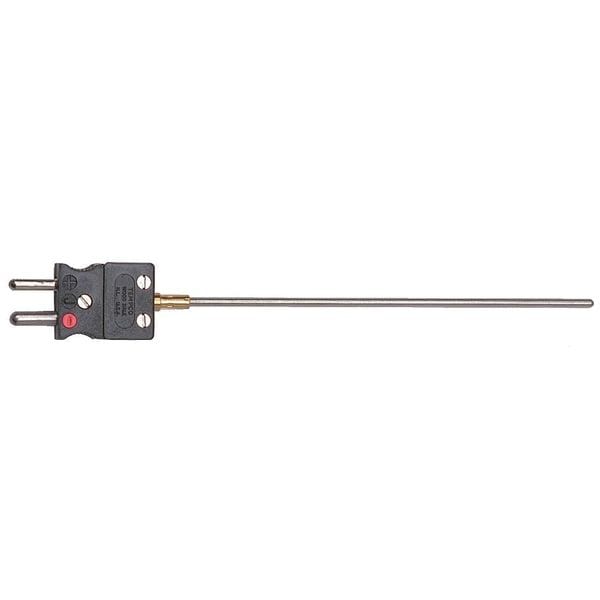

ThermocoupleProbe, StandardPlug, TypeK

  • Mfr # MTA01546

  • Zoro # G3615297

product price:
$
72.49
/ea

Key Features

Wire Type
K
Jacket Color
Silver Over Red/White
Number of Conductors
2
Wire Size
20 AWG
Length - Wire and Cable
6"
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
MTA01546
Zoro #
G3615297
UPC #
-
Country of Origin
United States

Dimensions

Wire Size
20 AWG
Length - Wire and Cable
6"
Wire Size - Wire and Cable
20 AWG
Length
6"
Length (Wire and Cable)
6"
Wire Size (Wire and Cable)
20 AWG
Sheath Size (In.)
0.063 in
Probe Length
6.5 in
Probe Diameter
0.063 in
Probe Size
1/16 in x 6 1/2 in
Probe Tip Diameter
0.063 in

Details

Item
Thermocouple Probe
Wire Type
K
Jacket Color
Silver Over Red/White
Number of Conductors
2
Used In
6THU9 to 6THW6
Termination Type - Wire and Cable
Standard Plug
Ambient Temp. Limits
900 Degrees F
Wire Type - Wire and Cable
K
Wire and Cable Item
Thermocouple Wire
Termination Type
Standard Plug
Insulation
Magnesium Oxide
Insulation Material - Wire and Cable
Magnesium Oxide
Solid / Stranded
Stranded
Termination Type (Wire and Cable)
Standard Plug
Material
Inconel 600
Thermocouple Type
Type K
Grounded / Ungrounded
Ungrounded
Plug or Connector Type
Standard Plug
Thermocouple Element
20 AWG
Temp. Limit (Deg. F)
2,100
Probe Sheath Material
Inconel
Minimum Temperature °F
32 Degrees F
For Air
Yes
Includes Thermowell
No
Probe Bend
Straight
Maximum Temperature °C
1,260 Degrees C
For Solids
Yes
For Surfaces
No
Connector Type
Standard Plug
Tip Style
Rounded
Junction Type
Ungrounded
For Application
Appliances, Duct, Food and Beverage, HVAC, Ovens, Packaging, Pharmaceutical
Sensor Type
Thermocouple
Maximum Wire Gauge
0.25 mm
Minimum Temperature °C
0 Degrees C
For Liquids and Gels
Yes
Maximum Temperature °F
2,300 Degrees F
Temperature Range
32 Degrees to 2,300 Degrees F/0 Degrees to 1,260 Degrees C
For Gases
Yes
Accuracy
+/-2.2 Degrees C or +/-0.75 %, Whichever is Greater
Maximum Temperature °F
2,300 Degrees F
Maximum Temperature °C
1,260 Degrees C
Minimum Temperature °C
0 Degrees C
Minimum Temperature °F
32 Degrees F
For Media Type
Gases, Liquids and Gels, Solids
Maximum Temperature (°F)
2,300 Degrees F
Maximum Temperature (°C)
1,260 Degrees C

Description

Thermocouple Probe, Type K, Ungrounded, For Application Appliances, Duct, Food and Beverage, HVAC, Ovens, Packaging, Pharmaceutical, Standard Plug, Probe Size 1/16 in x 6 1/2 in, Cable Length Not Applicable, 32 Degrees to 2,300 Degrees F/0 Degrees to 1,260 Degrees C, Thermocouple
