Standard Duty Air Circulator, Floor Mount, 24 in Blade Dia, 115/208-230V, 12,867 cfm

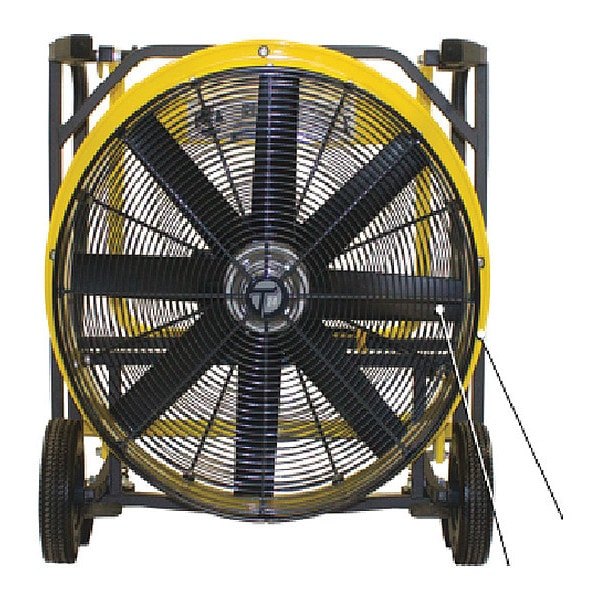

The TEMPEST - 913-1261 is a mobile, floor-mount standard-duty air circulator with a 24 in blade diameter and 8 Air Flex fiberglass reinforced polymide blades. It delivers an airflow of 12,867 CFM (CFM High) for spot cooling, particulate/fume ventilation, and general air circulation as specified. The unit is assembled (no assembly required) and is non-oscillating with a wheeled base.

Key Features:

• Air flow: 12,867 cfm (CFM High)
• Blade diameter: 24 in; Number of blades: 8; Blade material: Air Flex Fiberglass Reinforced Polymide
• Motor: 1 hp, 1,725 RPM; Motor type: Dual Voltage Capacitor Start; Motor enclosure: Totally Enclosed Fan Cooled (as rated for hazardous environments).
• Voltage/Phase/Hz: 115/208-230V, 1 phase, 60 Hz; Amps: 13.4/6.8-6.7; Watts: 1610 W
• Drive type: Direct Drive; Bearing type: Ball; Shaft diameter: 5/8 in
• Number of speeds: 1; Oscillation: Non-Oscillating; Thermal protection: Automatic over-temperature protection (per specifications).
• Housing/Fan housing material: Welded steel / Steel; Guard material: Spun Aluminum; Wire guard finish: Nickel Chrome
• Mounting/Mobility: Floor mount; Wheeled base (mobile); Fan cord length: 2 ft
• Rated max ambient operating temperature: 120°F.
• Dimensions: Width 28-1/4 in; Height 30 in; Depth/Max. depth 22-1/2 in
• Application: Spot cooling and particulate/fume ventilation; Air circulation; Environmental applications: Industrial
• Assembled: Yes; Assembly required: No; Fan style: Standard Duty; Fan accessory style: Standard
