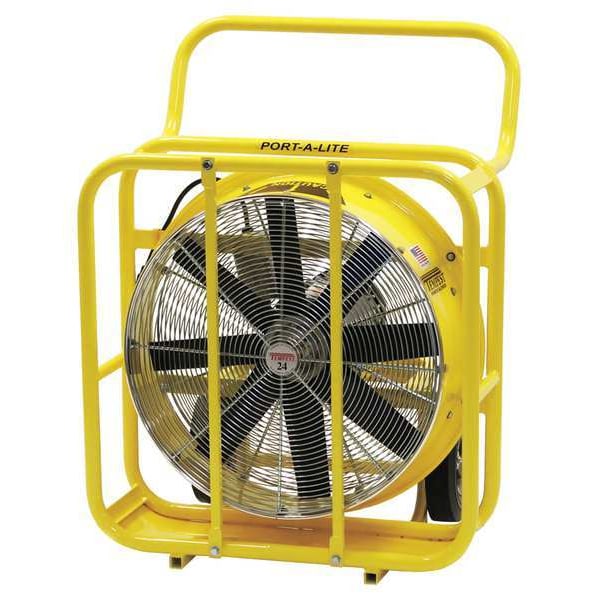

Standard Duty Air Circulator, Floor Mount, 24 in Blade Dia, 115/208-230V, 12,867 cfm

  • Mfr # 913-1065
  • Zoro # G8143782
product price:
$
2,664.99
/ea
Additional $170.00 delivery surcharge applies per item.
See details

Key Features

Blade Diameter
24 in
Oscillation
Non-Oscillating
Number of Speeds
1
Voltage
115V AC, 208V AC to 230V AC
Phase
Single
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
913-1065
Zoro #
G8143782
UPC #
-
Country of Origin
United States

Dimensions

Blade Diameter
24 in
Shaft Dia.
5/8 in
Height
40 3/4 in
Width
31 in
Max. Depth
23"
Depth
23 in
Fan Cord Length
2 ft

Details

Oscillation
Non-Oscillating
Number of Speeds
1
Voltage
115V AC, 208V AC to 230V AC
Phase
Single
Motor HP
1 hp
Air Flow
12,867 cfm
Drive Type
Direct Drive
Blade Material
Polyamide
Sound Level
100 dBA
Item
Cooling Fan
CFM High
12,867
Mobile/Stationary
Mobile
Watts
1610 W
Number of Blades
8
Guard Material
Aluminum
Motor Type
Capacitor-Start
Assembled
Yes
Wire Guard Finish
Zinc-Plated
Application
Spot Cooling and Particulate/Fume Ventilation
Housing Material
Welded Steel
Thermal Protection
Auto
Fan Style
Standard
Environmental Applications
Industrial
Motor Enclosure
Totally Enclosed Air-Over
Max. Ambient Temp.
120 Degrees F
Hz
60 Hz
Fan Accessory Style
Standard
Bearing Type
Ball
Fan Mounting Location
Floor
Motor RPM
1725
Wheeled Base
Mobile
Amps
13.4/6.8/6.7 A
RPM
1,725 RPM
Assembly Required
No
Fan Housing Material
Steel
Material
Welded Steel
Motor hp
1 hp
Base Type
Trolley
Fan Power Source
Plug-In
Housing Finish
Powder Coated
For Location
Garage, Warehouse
Airflow
12,867 cfm
Color
Yellow
Hazardous Location Rating
Class I, Div 1, Group C, D, Class II, Div 1, Group F, G
Guard Color
Silver
Fan Shape
Drum

Description

Cooling Fan, Fan Mounting Location Floor, Number of Speeds 1, Blade Dia. 24 in, Non-Oscillating, Fan Cord Length 2 ft, Fan Power Source Plug-In, 1610 W Watts, 1,725 RPM RPM, Number of Blades 8, 13.4/6.8/6.7 A Amps, Height 40 3/4 in, Width 31 in, 60 Hz Hz, Bearing Type Ball, Blade Material Polyamide, Aluminum, Yellow, Not Applicable
