Tesa Brown & Sharpe

Dial Test Indicator, Hori, 0 to 0.008 In

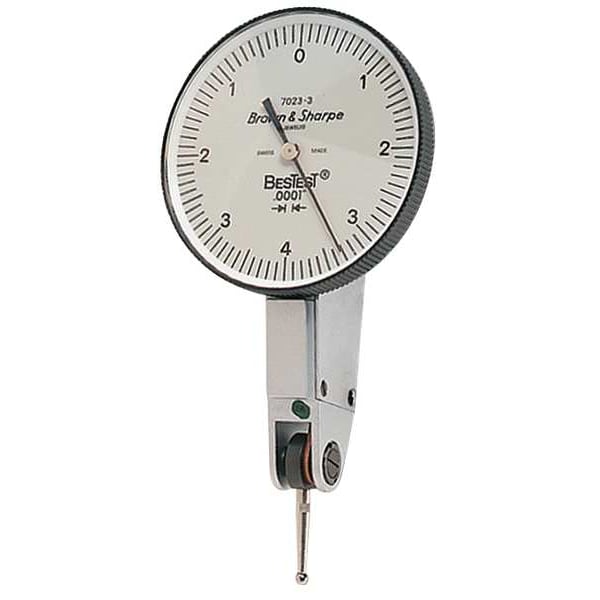

Tesa Brown & Sharpe Dial Test Indicator, Hori, 0 to 0.008 In 599-7023-3
Hover or click to zoom Tap to zoom
  • Graduations: 0.001 in
  • Range: 0 in to 0.008 in
  • Features: Bidirectional with Automatic Reversal; Continuous Clockwise Pointer Rotation; Jeweled Movement with 7 Rubies
  • Accuracy: +/-0.0001 in
  • Includes: 5/16 in Contact, Extension Rod, G Clamp, Swing Arm Attachment, Thumb Clamp, Tool Post Base, Vertical Rod
  • Indicator Style: Horizontal
  • Contact Point Style: Carbide
  • Reading: Balanced
See full product details
$289.00

Subtotal: $289.00

Tesa Brown & Sharpe #599-7023-3 Specifications

  • Graduations: 0.001 in
  • Range: 0 in to 0.008 in
  • Features: Bidirectional with Automatic Reversal; Continuous Clockwise Pointer Rotation; Jeweled Movement with 7 Rubies
  • Accuracy: +/-0.0001 in
  • Includes: 5/16 in Contact, Extension Rod, G Clamp, Swing Arm Attachment, Thumb Clamp, Tool Post Base, Vertical Rod
  • Indicator Style: Horizontal
  • Contact Point Style: Carbide
  • Reading: Balanced
  • Bearing Type: Plain
  • Series: BESTEST
  • Dial Reading: 0-100
  • Contact Point Length: 1/2 in
  • Dial Size: 1.5 in
  • Dial Color: White
  • Contact Point Dia.: 0.08 in
  • Item: Horizontal Dial Test Indicator
  • Standards: DIN 2270, EN ISO 9493
  • Range per Revolution: 0.0080 in
  • Long Form Calibration Certificate: No
  • Number of Indicators: 1
  • Mounting Style: Dovetail
  • Contact Point Shape: Ball
  • Stylus Length: 0.5 in
  • Case Type: Case
  • Dimension Type: Inch
  • Operation Type: Lever-Style
  • Non-Conductive Tip: No
  • Shock Resistant: Yes
  • Contact Point Material: Steel
  • Hysteresis: 8 micronm
  • Test Indicator Style: Horizontal
  • Includes Case: Yes
  • Non-Magnetic Tip: No
  • Stylus Diameter: 0.08 in
  • Repeatability: +/-0.001 in
  • Includes Dovetail Mount Attachments: Yes
  • Swivel Angle: 240 Degrees
  • Stem Thread Size: M1.4
  • Included Certification: Certificate of Accuracy and Traceability
  • Maximum Measurement - Inch: 0.008 in
  • Minimum Measurement - Inch: 0 in
  • Product Type: Horizontal Dial Test Indicator
  • Country of Origin (subject to change): China

Description

This TESA BROWN & SHARPE Horizontal Dial Test Indicator is a must-have for any serious machinist. With an accuracy of +/- 0.0001 in, you can be sure that the tool will give you reliable readings. This indicator has a dial size of 1.5 in and is able to measure between 0 in and 0.008 in. The graduated dial measures 0.001 in on its vernier scale, giving you highly accurate readings each time you use it. Its balanced dial reading allows for easy reading without having to make mental calculations every time you use it, saving you time and effort when working with machinery or equipment that require precision measurements like your lathe or milling machine.. If you want to take your measuring skills to the next level, equip yourself with this TESA BROWN & SHARPE Horizontal Dial Test Indicator today.
