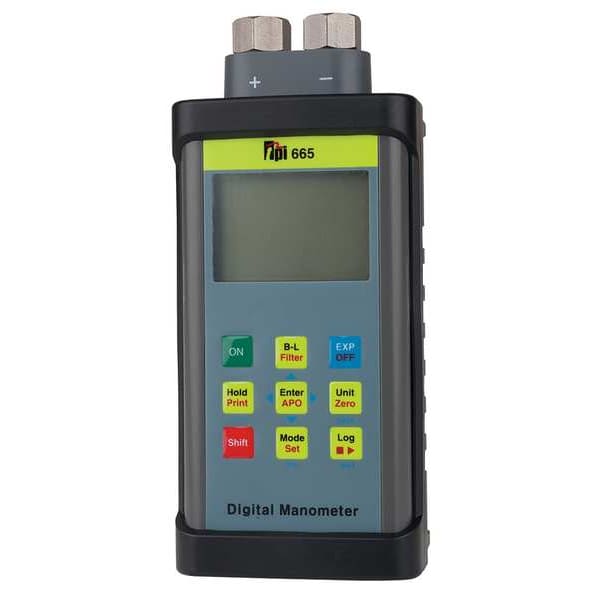

Test Products International Digital Manometer, +/-101.5 psi, LCD 665 - main

Digital Manometer, +/-101.5 psi, LCD

  • Mfr # 665

  • Zoro # G5195346

product price: $278.99
/ea
Free Shipping & Returns

Key Features

Includes
Protective Boot with Magnets
Standards
CE, RoHS
Accuracy
+/-0.2% of Full Scale
Pressure Accuracy
+/-0.2% of Full Scale
Battery Type
(2) AA
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
665
Zoro #
G5195346
UPC #
637623006654
Country of Origin
Korea, Republic of

Dimensions

Manufacturers Warranty Length
3 yr
Process Connection Size
1/4 in
Battery Size
AA

Details

Item
Digital Manometer
Includes
Protective Boot with Magnets
Standards
CE, RoHS
Accuracy
+/-0.2% of Full Scale
Pressure Accuracy
+/-0.2% of Full Scale
Battery Type
(2) AA
Pressure Resolution
0.01 in wc
For Use With
Non-Corrosive Liquid Applications
Operating Temp. Range
32 Degrees to 104 Degrees F
Interface
IR to USB
Resolution
Selectable
Display
LCD
Pressure Range
-101.5 psi to 101.5 psi
Calibration Certificate Included
No
Minimum Pressure
-101.5 psi
Maximum Operating Pressure
101.5 psi
Wireless Connectivity
Infrared
Min/Max Capture
Yes
Data Hold
Yes
Series
665
Batteries Required
Yes
Type of Pressure
Differential
Auto Power Off
Yes
NIST Traceable Certificate
No
Process Connection Type
NPT
Housing Material
Aluminum
Number of Connections
2
Digital Display Features
5 Digit Backlit LCD
Maximum Operating Temperature
104 Degrees F
Low Battery Indicator
Yes
Maximum Pressure
101.5 psi
Data Logging
5,000 Readings
Number of Pressures Measured
Dual
Manometer Type
General Purpose Digital Manometer
Minimum Operating Temperature
32 Degrees F
Data Interface
USB
Batteries Included
Yes
Display Units
bar, in H2O, in Hg, kPa, mm H2O, mm Hg, psi
Number of Batteries Required
2
Includes NIST-Traceable Calibration Certificate
No NIST-Traceable Calibration Certificate Included
Pressure Stages Measured
Dual
Includes Data Logging
Data Logging Included
Operating Temperature - Maximum
104 Degrees F
Includes Data Hold
Data Hold
Includes Min/Max Capture
Min/Max Capture
Pressure Measurement - Minimum
-101.5 psi
Pressure Type Measured
Differential
Process Connection Material
Metal
Pressure Measurement - Maximum
101.5 psi
Number of Process Connections
2
Operating Temperature - Minimum
32 Degrees F
Number of Digits
5
Operating Pressure - Maximum
15 psi
Includes Low Battery Indicator
Low Battery Indicator
Digital Display Type
Backlit LCD
Includes Batteries
Batteries Included

Description

Digital Manometer, Maximum Pressure 101.5 psi, Minimum Pressure -101.5 psi, Accuracy +/-0.2 Percent of Full Scale, Process Connection Size 1/4 in, Process Connection Type NPT, Batteries Included Yes, Digital Display Features 5 Digit Backlit LCD, NIST Traceable Certificate No, Series 665, Wireless Connectivity Infrared, Auto Power Off Yes, Batteries Required Yes, Battery Type (2) AA, Calibration Certificate Included No, Data Hold Yes, Data Interface USB, Data Logging 5,000 Readings
