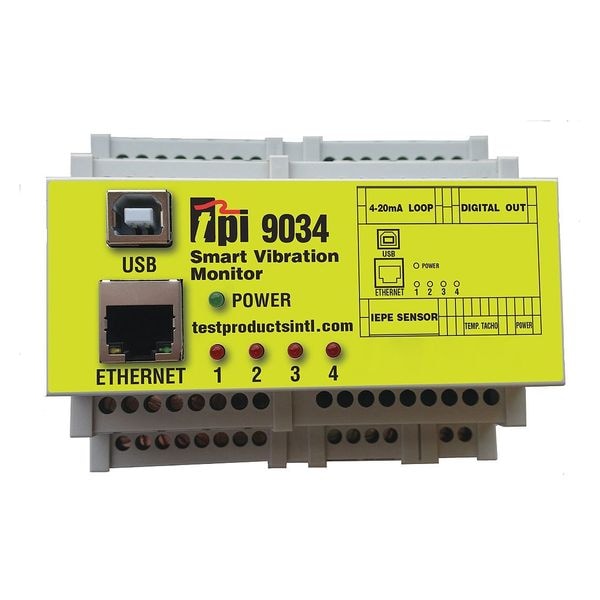

Test Products International Vibration Meter, 720mm/sec Velocity 9034 - main

Vibration Meter, 720mm/sec Velocity

  • Mfr # 9034

  • Zoro # G0228090

product price: $1,191.99
/ea
Free Shipping & Returns

Key Features

Acceleration Range
1 to 1000 mV/g
Frequency Range (Hz)
2 Hz to 25.6 kHz
Temp. Range (F)
32 Degrees to 122 Degrees
Velocity
720mm/sec
Bearing/Gear Check
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9034
Zoro #
G0228090
UPC #
637623090349
Country of Origin
Korea, Republic of

Dimensions

Manufacturers Warranty Length
3 yr
Manufacturer Warranty Length
3 yr

Details

Item
Vibration Meter
Acceleration Range
1 to 1000 mV/g
Frequency Range (Hz)
2 Hz to 25.6 kHz
Temp. Range (F)
32 Degrees to 122 Degrees
Velocity
720mm/sec
Bearing/Gear Check
Yes
Auto Power Off
Yes
Data Hold
No
Special Features
(4) Station Monitoring Interface
Interface
USB
Display
Integrated
Accuracy
+/-5%
Temp. Range (C)
0 Degrees to 50 Degrees
Calibration Certificate
Yes
Minimum Operating Temperature
32 Degrees F
Minimum Velocity Measured
0.001 in/sec
Testing Functions
Acceleration, Velocity
Calibration Certificate Type
Available Separately
Displacement Max Resolution
0.01 mi
Maximum Operating Temperature
131 Degrees F
Acceleration Measurement - Minimum
1 mV/g
Minimum Displacement Measured
0.01 mi
Maximum Displacement Measured
20,000 mi
Digital Display Screen Type
No Display
Acceleration Max Resolution
50 g
Alert Type
Vibration
Features
(4) Accelerometer Channel, (8) Accelerometer Channel Versions, 24V DC Switched Output, Ethernet Socket, Tacho Input, Temperature Input
Velocity Max Resolution
0.001 in/sec
Number of Records Stored
4,096
Acceleration Measurement - Maximum
1,000 mV/g
Frequency Ranges
2 Hz to 25.6 kHz
Maximum Velocity Measured
999.9 in/sec

Description

Vibration Meter, Accuracy +/-5 Percent, Acceleration Measurement - Minimum 1 mV/g, Acceleration Measurement - Maximum 1,000 mV/g, Number of Records Stored 4,096, Maximum Velocity Measured 999.9 in/sec, Minimum Velocity Measured 0.001 in/sec, Acceleration Max Resolution 50 g, Displacement Max Resolution 0.01 mi, Maximum Displacement Measured 20,000 mi, Minimum Displacement Measured 0.01 mi, Velocity Max Resolution 0.001 in/sec, Auto Power Off Yes, Alert Type Vibration
