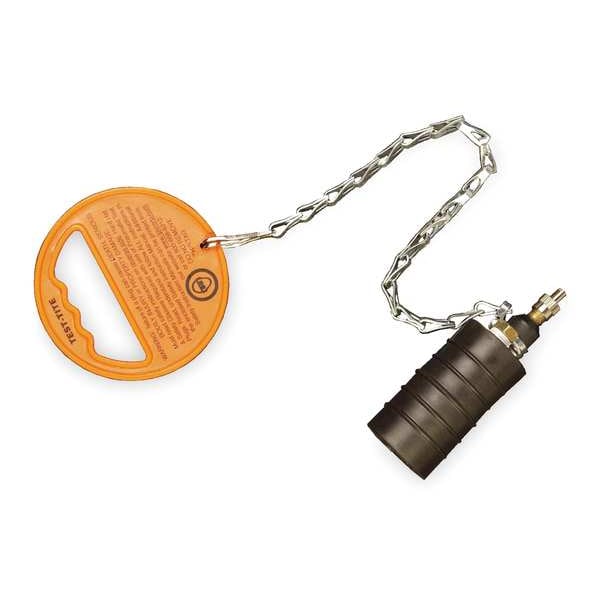

Multi-Size Pneumatic Test Plug 4" to 6"
Mfr # 83246
Zoro # G1508044
product price:Â
$
134.99
/ea
Free Shipping & Returns
Key Features
Material
Rubber
Max. Diameter
6.25 in
Nominal Size
4 to 6 in
For Use In
DWV Systems to Seal Round and Out of Round Pipe; To Testing of Pipelines or to Temporarily Stop the Flow
Min. Dia.
3.41 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 83246
- Zoro #
- G1508044
- UPC #
- 012181832462
- Country of Origin
- United States
- Material
- Rubber
- For Use In
- DWV Systems to Seal Round and Out of Round Pipe; To Testing of Pipelines or to Temporarily Stop the Flow
- Max. Back Pressure
- 30 ft of Head
- Type
- Pneumatic Test Plug
- Required Inflation Pressure
- 30 psi
- Item
- Test Plug
- Includes
- Pressure-Relief Valve
- Number of Inflation Chambers
- 1
- Head Tether Connection
- Eyebolt
- For Use On
- Drain, Vent, Waste
- Air Connection Type
- NPT
- Maximum Back Pressure (Air)
- 13 psig
- Maximum Back Pressure (Water)
- 30 ft of head
- Plug Seal Material
- Natural Rubber
- Application
- Testing of Pipelines, Temporarily Stop the Flow
- Body Surface Style
- Textured
- Contains Pressure Release Valve
- Yes
- Includes Protective Sleeve
- No
- Features
- Replaceable Tank Valve
- Air Connection Gender
- Male
- Test Plug Weight
- 1 lb
Description
Test Plug, Air Connection Gender Male, Air Connection Size 1/4 in, Air Connection Type NPT, Body Surface Style Textured, Bypass Connection Size Not Applicable, Bypass Connection Type Not Applicable, Bypass Thread Gender Not Applicable, Deflated Diameter 7.25 in, Deflated Length 5.75 in, For Maximum Pipe Inside Diameter 6.25 in, For Maximum Pipe Size 6 in, For Minimum Pipe Inside Diameter 3.41 in, For Minimum Pipe Size 4 in, Head Tether Connection Eyebolt, Inflated Length 7.25 in
