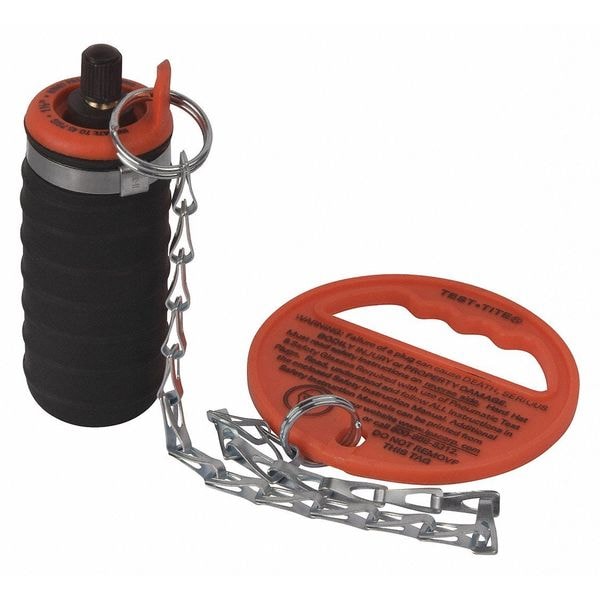

Pressure Relief Pneumatic Test Plug 1-1/4" to 1-1/2"
- Mfr # 83585
- Zoro # G3375878
product price:Â
$
35.19
/ea
Key Features
Material
Rubber
Max. Diameter
1.5 in
Nominal Size
1 1/2 in
For Use In
DWV Plumbing Systems and Seal for Pipe
Min. Dia.
1.49 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 83585
- Zoro #
- G3375878
- UPC #
- 012181835852
- Country of Origin
- United States
- Material
- Rubber
- For Use In
- DWV Plumbing Systems and Seal for Pipe
- Max. Back Pressure
- 13 psi
- Type
- Pneumatic Test Plug
- Required Inflation Pressure
- 45 psi
- Item
- Test Plug
- Air Connection Type
- NPT
- Maximum Back Pressure (Air)
- 13 psig
- Includes Protective Sleeve
- No
- Body Surface Style
- Textured
- Contains Pressure Release Valve
- Yes
- Number of Inflation Chambers
- 1
- Maximum Back Pressure (Water)
- 30 ft of head
- For Use On
- Drain, Vent, Waste
- Application
- Cleanout Tees, Sewer Wyes, Testing Shower Drains
- Features
- Multiple Sealing Ribs are Located in the Center Portion of the Plug, Pressure Relief Automatically Resets for Each inflation, Pressure Relief Valve Releases Excess Pressure into the Atmosphere, Ring Tag is Attached to Nylon Core, 3 Year Limited Warranty
- Head Tether Connection
- Handle and Chain
- Test Plug Weight
- 3 lb
- Air Connection Gender
- Male
- Plug Seal Material
- Natural Rubber
- For Material Type
- ABS, Cast Iron, PVC
Description
Test Plug, Air Connection Gender Male, Air Connection Size 1/4 in, Air Connection Type NPT, Body Surface Style Textured, Bypass Connection Size Not Applicable, Bypass Connection Type Not Applicable, Bypass Thread Gender Not Applicable, Deflated Diameter 1.78 in, Deflated Length 4 in, For Maximum Pipe Inside Diameter 1.5 in, For Maximum Pipe Size 1 1/2 in, For Minimum Pipe Inside Diameter 1.49 in, For Minimum Pipe Size 1 1/4 in, Head Tether Connection Handle and Chain, Inflated Length 5.63 in
