This item is Discontinued.

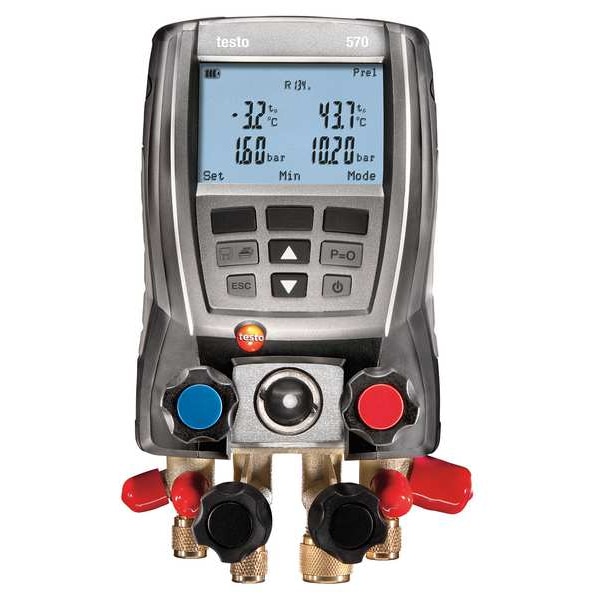

Testo Digital Manifold Gauge, 4-Valve 0563-5703

Digital Manifold Gauge, 4-Valve (Discontinued)

  • Mfr # 0563-5703
  • Zoro # G4973936
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
0563-5703
Zoro #
G4973936
UPC #
-
Country of Origin
China

Dimensions

Vacuum Port Size
3/8 in
Vacuum Port Connection Size
3/8 in

Details

Item
Manifold Gauge
For Use With
R12, R22, R123, R134a, R227, R290, R401A,R401B, R402A, R402B, R404A, R406A, R407A, R407C, R408A, R409A, R410A, R411A, R413A,R414B, R416A, R417A, R420A, R421A, R421B, R422A, R422B, R422D, R424A, R427A, R434A, R437A, R438A, R502, R503, R507, R600, R600A, R718 (H2O), R744 (only in the permitted measurement range up to 50 bar), R1234yf
Type
AC, Stationary Refigeration, Heat Pumps
Includes
(2) Clamp Probes, Analyzer, Carrying Case
Display
Back-lit
Features
Pressure, Temperature, Simultaneous Superheat and Sub Cool Calculations, Temp Compensated Leak Test Function, Built In Vacuum, 10,000 Point Onboard Data Storage, Ir Printer Output, 3Rd Probe Input
Number of Valves
4
Number of Hoses
0
Refrigerant Compatibility
R-12, R-123, R-1234yf, R-134A, R-22, R-227, R-290, R-401A, R-401B, R-402A, R-402B, R-404A, R-406A, R-407A, R-407C, R-408A, R-409A, R-410A, R-411A, R-413A, R-414B, R-416A, R-417A, R-420A, R-421A, R-421B, R-422A, R-422B, R-422D, R-424A, R-427A, R-434A, R-437A, R-438A, R-502, R-503, R-507, R-600, R-600A, R-718 (H2O), R-744
Gauges Low Side Blue
0 to 725 psi
Gauges High Side Red
0 to 725 psi
Accuracy
+/- 1.0 Degrees F at 72 Degrees F
Product Type
Manifold Gauge Set
Response Time
0.5 sec.
Low Side Display Pressure - Minimum
0 psi
Gauge Type
High Side/Low Side
Low Side Display Pressure - Maximum
725 psi
A2L Compatibility
A2L Compatible
For Refrigerant Type
High Side Display Pressure - Maximum
725 psi
High Side Display Pressure - Minimum
0 psi

Description

Manifold Gauge, Number of Valves 4, R-12, R-123, R-1234yf, R-134A, R-22, R-227, R-290, R-401A, R-401B, R-402A, R-402B, R-404A, R-406A, R-407A, R-407C, R-408A, R-409A, R-410A, R-411A, R-413A, R-414B, R-416A, R-417A, R-420A, R-421A, R-421B, R-422A, R-422B, R-422D, R-424A, R-427A, R-434A, R-437A, R-438A, R-502, R-503, R-507, R-600, R-600A, R-718 (H2O), R-744, Number of Hoses 0, 0 to 725 psi, 0 to 725 psi, 3/8 in
