Shop THEBEN

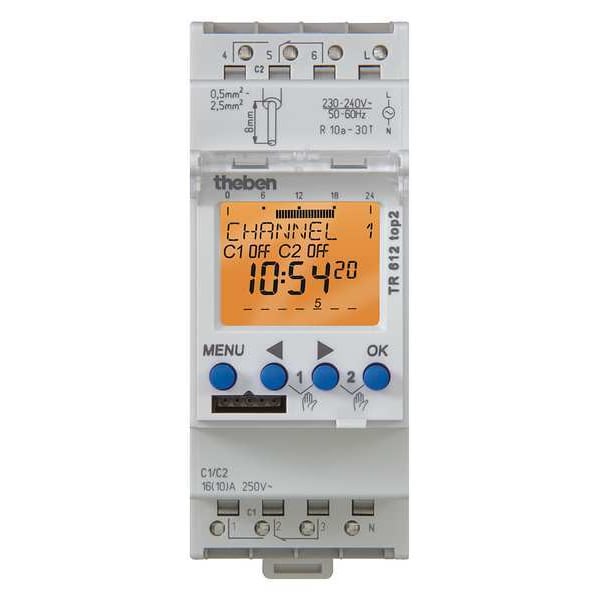

Electr. Timer, Din Rail, 24Hr/7D, 2 Chn.

  • Mfr # TR-612-TOP-2-120V

  • Zoro # G8728614

product price:
$
224.99
/ea
Free Shipping & Returns

Key Features

Operation Mode
8 Days
Number of Channels
2
Time Minimum Setting
2 min
Indoor/Outdoor Usage
Indoor
Voltage
120V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
TR-612-TOP-2-120V
Zoro #
G8728614
UPC #
-
Country of Origin
Germany

Dimensions

Display Height
3/4 in
Width
1 1/2 in
Display Width
1 in
Depth
2 3/4 in
Height
3 1/2 in
Overall Height
3 1/2 in
Overall Width
1 1/2 in
Overall Depth
2 3/4 in

Details

Item
Electronic Timer
Operation Mode
8 Days
Number of Channels
2
Time Minimum Setting
2 min
Indoor/Outdoor Usage
Indoor
Voltage
120V AC
Body Material
Plastic
Contact Form
SPDT
Amps
10 A
HP @ 120V
3 1/2 hp
Events Available - Electronic Timer
56
Available Actions - Electronic Timer
On/Off
Mounting
Din Rail
Description/Special Features
Program with Zero Cross Switching and Self Prompting Programming
Backup Device
Battery
Max. On/Off Cycles
56
Color
Gray
Standards
VDE
Number of Poles
2
Number of Pulse Events
0
Event Allocation - Electronic Timer
1 On/Off Action = 1 Event
NEMA Rating
1
Backup Time
10 yr
Min. Time Setting
1 min
Max. Time Setting
7 day
Enclosure
Plastic
Operating Temp.
-30 Degrees to 55 Degrees C
Features
Zero Cross Switching, Self Prompting Programming
Operating Temperature - Minimum
-22 Degrees F
Events Available
56
Time Setting - Maximum
7 day
Time Setting - Minimum
1 min
Astronomic Functionality
No
Mounting Style
DIN Rail
NEMA Enclosure Rating
1
Horsepower @ 120V - Maximum
3 1/2 hp
Timer Functions
On/Off
Body Color
Grey
AC Voltage Rating
120V AC
Current Rating - Maximum
10 A
Operating Temperature - Maximum
131 Degrees F
Time Maximum Setting
8 day

Description

Electronic Timer, Operation Mode 7 Days, Number of Channels 2, Contact Form SPDT, Voltage 120V AC, Amps 10 A, HP @ 120V 2600W, Events Available - Electronic Timer 56, Available Actions - Electronic Timer On/Off, Event Allocation - Electronic Timer 1 On/Off Action = 1 Event, Enclosure Plastic, Mounting DIN Rail, Number of Poles 2, Min. Time Setting 1 min, Max. Time Setting 7 day, NEMA Rating 1, Color Gray, Backup Device Battery, Backup Time 10 yr, Operating Temp. -30 Degrees to 55 Degrees C

Restrictions

Hazardous material
