  9. Plasma Cutter, 12.4 in H, 7.9 in W

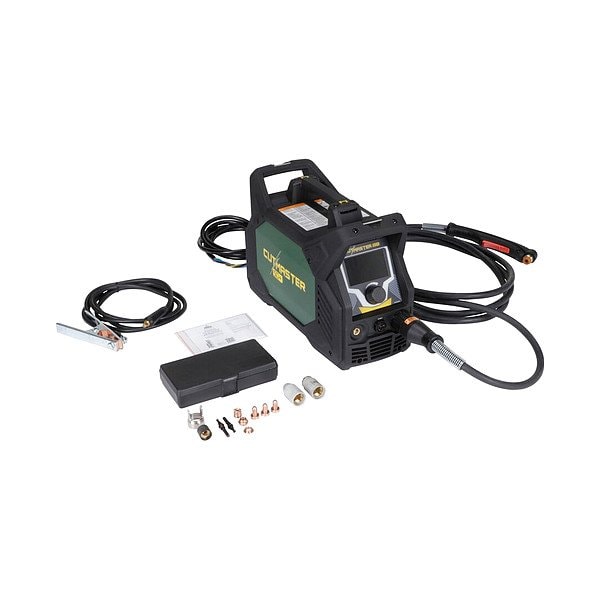

Thermal Dynamics Plasma Cutter, 12.4 in H, 7.9 in W 1-5000-1 - main

Plasma Cutter, 12.4 in H, 7.9 in W

  • Mfr # 1-5000-1

  • Zoro # G115380056

product price: $2,514.30
/ea
Free Shipping & Returns

Key Features

Input Voltage
120 V AC, 240 V AC
Series
TD Cutmaster 50+
Includes
Double - Tap Trigger, Industrial Sl60 1Torch, Safety Trigger Lock
Features
(3) Handles, Bright 10.9 cm TFT LCD Display with Glove-Friendly Adjustment Knob, CNC Functionality with Pre-Installed 14 pin CPC Receptacle and Voltage Divider Allows Start/Stop, OK to Move and Divided AC Voltage (ratio 20:1, 30:1, 40:1, 50:1, 80:1), Industrial SL60 1 Torch Featuring 2T/4T Function, Safety Trigger Lock and Double-Tap Trigger to Conserve Bottled Air, Portable, Durable and Lightweight, Post-Cut Air Purge to Expand Consumable Life
Standards
cETLus
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1-5000-1
Zoro #
G115380056
UPC #
662067334001
Country of Origin
China

Dimensions

Cutting Cable Length
10 ft
Overall Width
7.9 in
Overall Depth
18.3 in
Power Cord Length
10 ft
For Minimum Material Thickness
1/4 in
Overall Height
12.4 in
For Maximum Material Thickness
1 in
Ground Cord Length
10 ft

Details

Item
Plasma Cutter
Input Voltage
120 V AC, 240 V AC
Series
TD Cutmaster 50+
Includes
Double - Tap Trigger, Industrial Sl60 1Torch, Safety Trigger Lock
Features
(3) Handles, Bright 10.9 cm TFT LCD Display with Glove-Friendly Adjustment Knob, CNC Functionality with Pre-Installed 14 pin CPC Receptacle and Voltage Divider Allows Start/Stop, OK to Move and Divided AC Voltage (ratio 20:1, 30:1, 40:1, 50:1, 80:1), Industrial SL60 1 Torch Featuring 2T/4T Function, Safety Trigger Lock and Double-Tap Trigger to Conserve Bottled Air, Portable, Durable and Lightweight, Post-Cut Air Purge to Expand Consumable Life
Standards
cETLus
Maximum Output Current
50 A
For Material Type
Metal
Cutting Configuration
Drag Shield Cutting, Gouging, Standoff Cutting
Open Circuit Voltage
310 V DC
Welding Processes
Plasma Cutting
Required Air Flow
6.2 -8.6 bar (90 -125 psi)
Plasma Gas Type
Compressed Air, Compressed Nitrogen
Phase
Single-Phase
Plasma Cutting Minimum Output Current
16 A
Plasma Cutting Output @ Duty Cycle
16 A @ 100%, 25 A @ 40%, 30 A @ 100%, 50 A @ 50%
Plug Type
6-50P
Input Frequency
50/60 Hz
Plasma Torch Type
Handheld
Weight
38.6 lb
Maximum Pressure - Air Compressor
90 psi
Effective Input Current
120-240 VAC
Max. Input Current
120 - 240 VAC +/-15% 50/60Hz, 1 ¿
Color
Green
Plasma Cutter Model
1-5000-1

Description

Plasma Cutter, Cutting Configuration Drag Shield Cutting, Gouging, Standoff Cutting, Effective Input Current 120-240 VAC, For Material Type Metal, For Maximum Material Thickness 1 in, For Minimum Material Thickness 1/4 in, Input Frequency 50/60 Hz, Input Voltage 120 V AC, 240 V AC, Max. Input Current 120 - 240 VAC +/-15 Percent 50/60Hz, 1 �, Open Circuit Voltage 310 V DC, Phase Single-Phase, Plasma Cutter Model 1-5000-1, Maximum Output Current 50 A, Plasma Cutting Minimum Output Current 16 A
