  9. Plasma Cutter, 12.4 in H, 7.9 in W

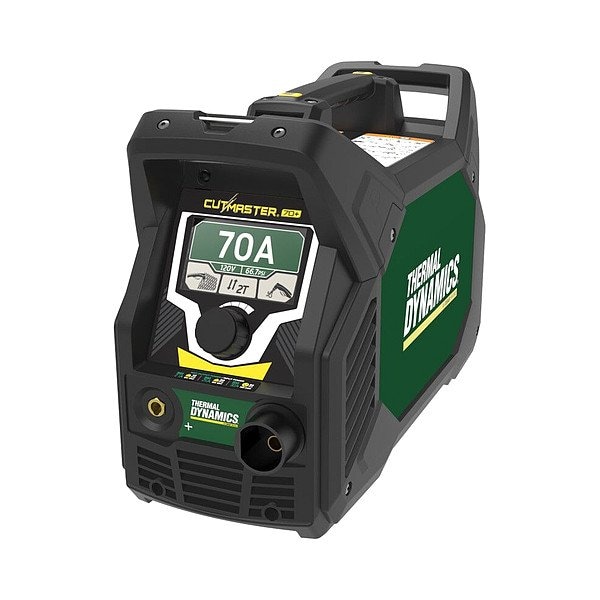

Thermal Dynamics Plasma Cutter, 12.4 in H, 7.9 in W 1-7000-1 - main

Plasma Cutter, 12.4 in H, 7.9 in W

  • Mfr # 1-7000-1

  • Zoro # G915380096

product price: $4,015.97
/ea
Free Shipping & Returns

Key Features

Input Voltage
120 V AC, 240 V AC
Series
Cutmaster 70+
Includes
Double - Tap Trigger, Industrial Sl60 1Torch, Safety Trigger Lock
Features
(3) Handles, Bright 10.9 cm TFT LCD Display with Glove-Friendly Adjustment Knob, CNC Functionality with Pre-Installed 14 pin CPC Receptacle and Voltage Divider Allows Start/Stop, OK to Move and Divided AC Voltage (ratio 20:1, 30:1, 40:1, 50:1, 80:1), Industrial SL60 1 Torch Featuring 2T/4T Function, Safety Trigger Lock and Double-Tap Trigger to Conserve Bottled Air, Portable, Durable and Lightweight, Post-Cut Air Purge to Expand Consumable Life
Phase
Single-Phase
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1-7000-1
Zoro #
G915380096
UPC #
662067334063
Country of Origin
Switzerland

Dimensions

Overall Width
7.9 in
Power Cord Length
10 ft
For Minimum Material Thickness
2 3/8 in
For Maximum Material Thickness
1 1/2 in
Cutting Cable Length
10 ft
Overall Depth
18.3 in
Overall Height
12.4 in
Ground Cord Length
10 ft

Details

Item
Plasma Cutter
Input Voltage
120 V AC, 240 V AC
Series
Cutmaster 70+
Includes
Double - Tap Trigger, Industrial Sl60 1Torch, Safety Trigger Lock
Features
(3) Handles, Bright 10.9 cm TFT LCD Display with Glove-Friendly Adjustment Knob, CNC Functionality with Pre-Installed 14 pin CPC Receptacle and Voltage Divider Allows Start/Stop, OK to Move and Divided AC Voltage (ratio 20:1, 30:1, 40:1, 50:1, 80:1), Industrial SL60 1 Torch Featuring 2T/4T Function, Safety Trigger Lock and Double-Tap Trigger to Conserve Bottled Air, Portable, Durable and Lightweight, Post-Cut Air Purge to Expand Consumable Life
Phase
Single-Phase
Welding Processes
Plasma Cutting
Plasma Cutter Model
1-7000-1
For Material Type
Metal
Effective Input Current
120-240 VAC
Weight
38.6 lb
Plasma Cutting Minimum Output Current
10 A
Required Air Flow
6.2 -8.6 bar (90 -125 psi)
Maximum Output Current
70 A
Maximum Pressure - Air Compressor
90 psi
Standards
IP23S
Plasma Cutting Output @ Duty Cycle
60 A @ 100%
Cutting Configuration
Standard Cutting, Gouging
Max. Input Current
120 - 240 VAC +/-15% 50/60Hz, 1 ¿
Plug Type
6-50P
Plasma Gas Type
Compressed Air
Open Circuit Voltage
319 V DC
Input Frequency
50/60 Hz
Plasma Torch Type
Handheld
Color
Green

Description

Plasma Cutter, Cutting Configuration Standard Cutting, Gouging, Effective Input Current 120-240 VAC, For Material Type Metal, For Maximum Material Thickness 1 1/2 in, For Minimum Material Thickness 2 3/8 in, Input Frequency 50/60 Hz, Input Voltage 120 V AC, 240 V AC, Max. Input Current 120 - 240 VAC +/-15 Percent 50/60Hz, 1 ¿, Open Circuit Voltage 319 V DC, Phase Single-Phase, Plasma Cutter Model 1-7000-1, Maximum Output Current 70 A, Plasma Cutting Minimum Output Current 10 A
