This item is Discontinued.

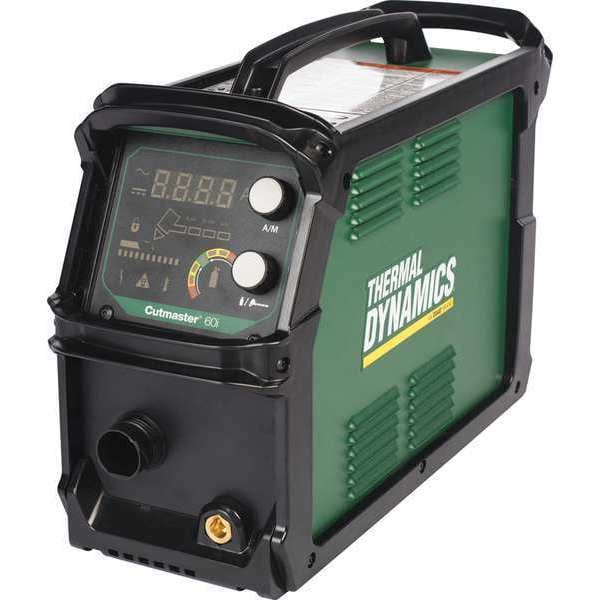

Thermal Dynamics Plasma Cutter, 60A Rated Output, 90 psi 3-5630-1X

Plasma Cutter, 60A Rated Output, 90 psi (Discontinued)

  • Mfr # 3-5630-1X
  • Zoro # G1566728
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
3-5630-1X
Zoro #
G1566728
UPC #
699488023627
Country of Origin
Mexico

Dimensions

Overall Width (In.)
7 17/20 in
Overall Height (In.)
14.1 in
Overall Depth (In.)
21.12 in
For Maximum Material Thickness
1 1/2 in
Power Cord Length
9 ft
Overall Height
14.1 in
Ground Cord Length
20 ft
Overall Depth
21.12 in
For Minimum Material Thickness
1/8 in
Overall Width
7.85 in

Details

Item
Plasma Cutter
Rated Output
60 A
Input Voltage
208 V AC, 230 V AC, 480 V AC
Cutting Capacity (In.)
5/8 in
Series
Cutmaster 60i
Input (Amps)
19/39/43A
Duty Cycle
50 %, 60 %, 100 %
PSI
90
Application
Metal Cutting
Includes
Power Supply Only
OCV
300V DC
Design
Inverter
Plasma Cutting Minimum Output Current
10 A
Maximum Pressure - Air Compressor
90 psi
For Material Type
Aluminum, Mild Steel, Stainless
Phase
Single-Phase
Plasma Torch
Torch Not Included
Rated Output at Duty Cycle
40 A @ 100%, 50 A @ 60%
Plasma Cutter Type
Plasma Cutter
Input Voltage (Nominal)
208V, 240V
Plug Type
6-50P
Open Circuit Voltage
300 V
Features
High-Visibility, Oversized Display With Gas Optimizer Technology and Consumables End-Of-Life Indicator
Max. Amperage Range
50 A - 100 A
Weight
16.8 kg
Plasma Cutter Model
3-5630-1X
Plasma Cutting Output @ Duty Cycle
40 A, 100%, 50 A, 60%, 60 A, 50%
Plasma Gas Type
Air
Required Air Flow
5 cfm
Welding Processes
Plasma Cutting
Color
Green
Plasma Torch Type
Torch Not Included
Max. Input Current
26 A @ 208 V (Three-Phase)
Input Frequency
50/60 Hz
Cutting Configuration
Plasma Cutting
Effective Input Current
400V, 3 ph
Maximum Output Current
60 A
Process
Plasma Cutting

Description

Plasma Cutter, Cutting Configuration Plasma Cutting, Effective Input Current 400V, 3 ph, For Material Type Aluminum, Mild Steel, Stainless, For Maximum Material Thickness 1 1/2 in, For Minimum Material Thickness 1/8 in, Input Frequency 50/60 Hz, Input Voltage 208 V AC, 230 V AC, 480 V AC, Max. Input Current 26 A @ 208 V (Three-Phase), Open Circuit Voltage 300 V, Phase Single-Phase, Plasma Cutter Model 3-5630-1X, Maximum Output Current 60 A, Plasma Cutting Minimum Output Current 10 A
