Shop THOMAS

Piston Air Compressor/Vacuum Pump, 1/3HP

  • Mfr # 688CE44

  • Zoro # G2024032

product price:
$
454.99
/ea
Free Shipping & Returns

Key Features

Lubrication Type
Oil Free
Number of Cylinders
1
HP
1/3 hp
Phase
Single
Voltage
115V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
688CE44
Zoro #
G2024032
UPC #
094700357489
Country of Origin
United States

Dimensions

Inlet Size
1/4 in
Outlet Size
1/4 in
Overall Length
8 in
Overall Height
6.8 in
Overall Width
5.375 in
Wire Rope Length
8 in
Length
8 in

Details

Item
Piston Air Compressor/Vacuum Pump
Lubrication Type
Oil Free
Number of Cylinders
1
HP
1/3 hp
Phase
Single
Voltage
115V AC
Sound Rating
63 dBA @ 60 psi
Power Cord
Yes
Valve
Corrosion Resistant Sandwich
Free Air CFM @ 10 In. Hg
0.9
Full Load Amps
3.6 A
Temp. Range
104 Degrees to 50 Degrees F
Free Air CFM @ 0 In. Hg
1.6
Free Air CFM @ 50 PSI
1.13
Max. PSI Cont./Int.
100/100
Free Air CFM @ 20 In. Hg
0.33
Motor Type
Shaded Pole, Thermally Protected with High Torque Start Winding
Hz
60
Standards
CSA, UL
Free Air CFM @ 100 PSI
0.76
Max. Vacuum
27.6 in Hg
Free Air CFM @ 20 PSI
1.37
Finish
Paint
RPM
1750
Thermal Protection
Yes
Free Air CFM @ 0 PSI
1.6
Cylinder Material
Aluminum
Minimum Operating Temperature
50 Degrees F
Maximum Operating Temperature
104 Degrees F
Outlet Type
NPT
Electrical Connection
Cord With Plugs
Maximum Continuous Pressure
100 psi
Frequency
60 Hz
Power Source
Corded Electric
Pump Type
WOB-L Piston
Maximum Vacuum
27.6 in Hg
Current Rating
3.6 A
Maximum Speed
1,750 RPM
Piston Type
WOB-L
Inlet Type
NPT
Maximum Intermittent Pressure
100 psi
Output Power
0.333 hp
Sound Level
63 dBA
Valve Type
Corrosion Resistant Sandwich
Free Air Flow Rate
1.6 cfm
Air Tank Style
Tankless
Duty Cycle
Continuous
Power Source - TS Only
Corded Electric
Power Source - old
Corded Electric

Description

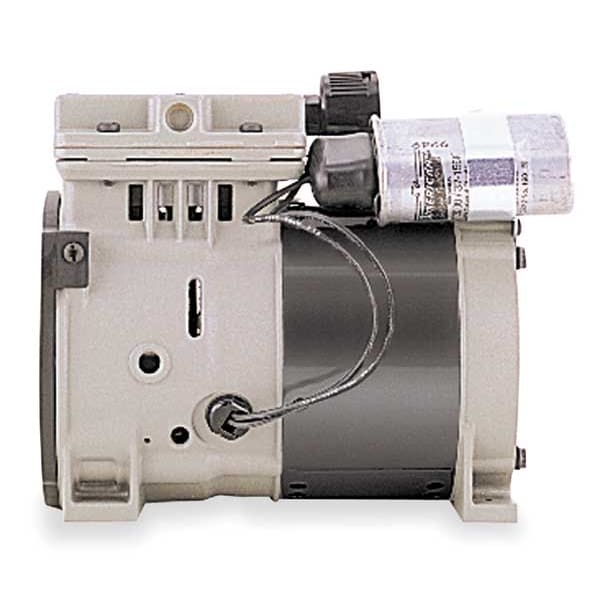

The Thomas 688CE44 is an oil-free, single-cylinder piston air compressor and vacuum pump with a WOB-L (wobble) piston design. It operates on 115V AC single-phase power at 60 Hz at a rated 1/3 hp output, in a tankless configuration. The oil-free design means the compression chamber runs without lubricant. It provides a free-air delivery ranging from 0.76 CFM at 100 psi up to 1.6 CFM at 0 psi, a maximum continuous pressure of 100 psi, and a maximum vacuum of 27.6 in Hg. It is rated at a maximum speed of 1,750 RPM, a full-load current of 3.6 A, and a measured sound level of 63 dBA (@ 60 psi). The operating temperature range is 50-104°F. Construction includes an aluminum cylinder, a shaded-pole motor (thermally protected, with a high-torque start winding), and corrosion-resistant sandwich valves in stainless steel. Air connections are 1/4 in NPT inlet and outlet. Overall dimensions are 8 x 5.375 x 6.8 in (L x W x H). Country of origin: United States.
