Thomson

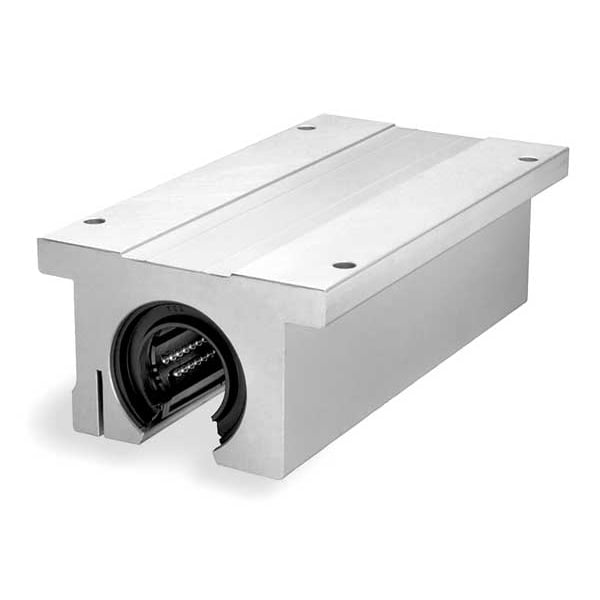

Pillow Block, 1.500 In Bore, 9.000 In L

product price: $808.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Bore Dia. (In.) 1.5 in
  • Material Aluminum Alloy
  • Self-Alignment Self-Aligning
  • Mounting Hole Dia. (mm) 0.28 in
  • Dimension A2 3.63 in
See all product information

Product Information

Dimensions

Bore Dia. (In.) 1.5 in
Mounting Hole Dia. (mm) 0.28 in
Dimension A2 3.63 in
Mounting Hole Dia. (In.) 0.28 in
Dimension A 4.75
Dimension H1 2.940 in
Dimension G 1.75 in
Bolt Size 0.25 in
Overall Width (In.) 4.75 in
Dimension E 5.5 in
Dimension N 0.28 in
Overall Length (In.) 9 in
Dimension B 9 in
Dimension E1 4.125 in
Dimension E2 0.74 in
Body Width (In.) 3.63 in
Overall Height (In.) 2 15/16 in
Dimension H 1.75 in
Dimension F1 0.5 in
Dimension G1 4.5 in
Dimension a 4.75 in
Flange Width 4.75 in
Length (In.) 9 in
Inside Dia. 1 1/2 in
Overall Length 9 in
Overall Height 3 in
Slot Width 0.62 in
Mounting Hole Diameter 0.28 in
Inside Diameter 1 1/2 in
Body Width 3.63 in
Flange Height 2.94 in

Details

Item Linear Pillow Block Bearing
Material Aluminum Alloy
Self-Alignment Self-Aligning
Dynamic Load Capacity (Lb.) 7,760 lb
Type Open Pillow Block
Mounting Surface to Shaft Center (In.) 1.75 in
Dynamic Load Capacity (N) 7,760 lbf
Mounting Hole Center (In.) 5.5 in
For Use With Thomson Shaftng
Color Silver
Steady State Speed up to 3 m/s
Bearing Type Ball
System of Measurement Inch
Minimum Operating Temperature Not Available
Maximum Operating Temperature 185 Degrees F
Series Super Smart
Housing Style Twin
Dynamic Load Capacity 7,760 lbf
Mounting Surface to Shaft Center 1.75 in
Includes Seals Seals Not Included
Pillow Block Type Open
Flange Thickness 0.44 in
Slot Angle 30 Degrees
Mounting Hole Center 5.5 in

Description

Linear Pillow Block Bearing, System of Measurement Inch, Inside Diameter 1 1/2 in, Overall Length 9 in, Self-Alignment Self-Aligning, Material Aluminum Alloy, Dynamic Load Capacity 7,760 lbf, Steady State Speed 10 fps, Series Super Smart, Maximum Operating Temperature 185 Degrees F, Minimum Operating Temperature Not Available, Housing Style Twin, Pillow Block Type Open, Bolt Size 0.25 in, Overall Height 3 in, Body Width 3.63 in, Includes Seals Seals Not Included, Slot Width 0.62 in
