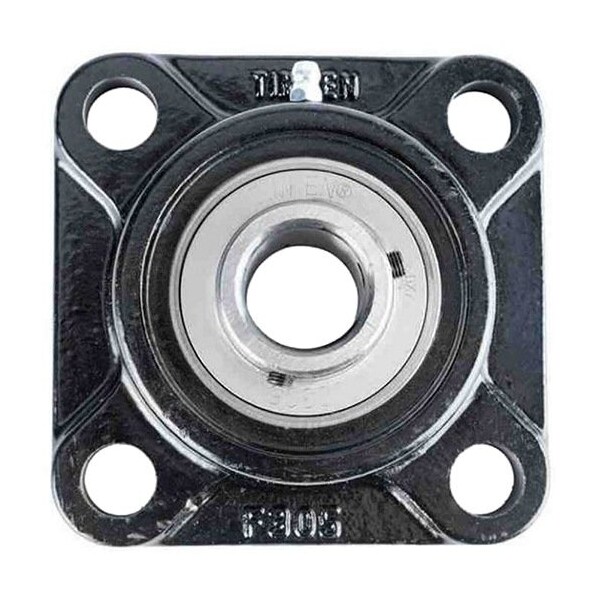

Flange Block Bearing; 4 Bolt Square Flange Block; 1 in. Bore; 3.9 in. Bolt Circle Diameter
Mfr # UCF205-16
Zoro # G912501425
product price: $83.89
/ea
Free Shipping & Returns
Key Features
System of Measurement
Inch
Housing Material
Cast Iron
Bore Diameter
1 in
Housing Type
Square
Static Load Capacity
1765 lb
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
UCF205-16
Zoro #
G912501425
UPC #
-
Country of Origin
United States
Dimensions
Bore Diameter
1 in
Overall Width
35.7 mm
Details
System of Measurement
Inch
Housing Material
Cast Iron
Housing Type
Square
Static Load Capacity
1765 lb
Dynamic Load Capacity
3147 lb
Shaft Locking Type
Set Screw
Item
4 Bolt Flange Bearing
Bearing Insert Type
Ball Bearing
Temp. Range
248 °F Max
Number of Mount Holes
4
Series
UCF Standard Duty Set Screw Locking 4-Bolt Flange
Closure
Dual Seals (B-Type)
Description
Flange Block Bearing; 4 Bolt Square Flange Block; 1 in. Bore; 3.9 in. Bolt Circle Diameter; 2-3/4 in. Bolt Spacing; 1 Piece Solid; Set Screw; Cast Iron; Ball Bearing; Relubricatable; Contact Seal
