Flange Mount Ball
Mfr # RFC1 1/4S
Zoro # G515549060
product price:Â $332.99
/ea
Free Shipping & Returns
Key Features
System of Measurement
Inch
Housing Type
Circular
Number of Mount Holes
4
Bearing Insert Type
Radial Ball
Shaft Locking Type
Concentric Locking Collar
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
RFC1 1/4S
Zoro #
G515549060
UPC #
-
Country of Origin
United States
Dimensions
Bore Diameter
1-1/4 in
Mount Hole Center-to-Center Length
2-29/32 in
Overall Length
5 in
Overall Width
1-19/32 in
Overall Height
5 in
Flange Thickness
3/8 in
Center Height
2-1/2 in
Bolt Circle Diameter
4.125 in
Mount Hole Center-to-Center Height
2 29/32 in
Mounting Bolt Size
3/8 in
Bore Diameter Tolerance
-0.0005 in
Mount Hole Size
0.469 in
Description

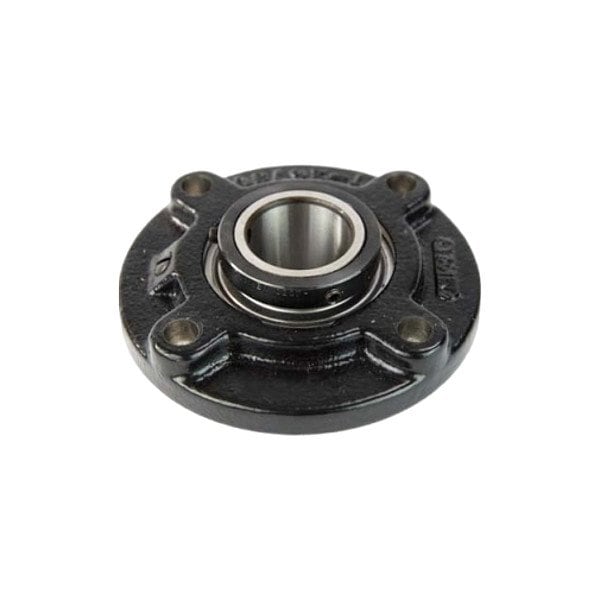

Flange Mount Bearing, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 1/4 in, Bore Type Cylindrical, Center Height 2 1/2 in, Closure Double Sealed, Expansion Type Fixed, Housing Material Cast Iron, Housing Type Circular, Included Bearing GC1103KRRB3, Lubricant Material NLGI 2 Lithium Complex Grease, Maximum Speed 5400 RPM, Maximum Temperature 250 Degrees F, Minimum Temperature -40 Degrees F, Mount Hole Center-to-Center Height 2 29/32 in
