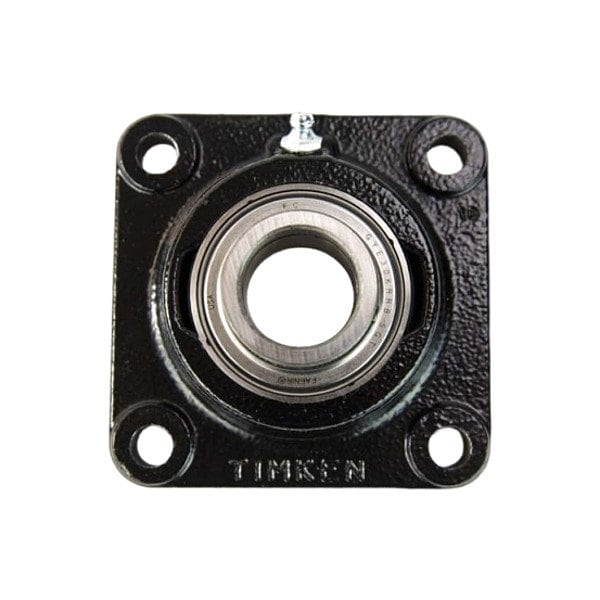

Flange Mount Ball
Mfr # YCJM 2 11/16
Zoro # G615563461
product price:Â $548.99
/ea
Free Shipping & Returns
Key Features
System of Measurement
Inch
Housing Type
Square
Number of Mount Holes
4
Bearing Insert Type
Radial Ball
Shaft Locking Type
Set Screw
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
YCJM 2 11/16
Zoro #
G615563461
UPC #
-
Country of Origin
United States
Dimensions
Bore Diameter
2-11/16 in
Mount Hole Center-to-Center Length
6 in
Overall Length
7-3/4 in
Overall Width
3-25/64 in
Overall Height
7-3/4 in
Flange Thickness
7/8 in
Center Height
3-7/8 in
Bore Diameter Tolerance
-0.001 in
Mount Hole Center-to-Center Height
6 in
Inner Ring Width
3.063 in
Mounting Bolt Size
3/4 in
Back Side to Center Width
1.646 in
Mount Hole Size
3/4 in
Description
Flange Mount Bearing, Back Side to Center Width 1.646 in, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 2 11/16 in, Bore Type Cylindrical, Center Height 3 7/8 in, Closure Double Sealed, Expansion Type Fixed, Housing Material Cast Iron, Housing Type Square, Included Bearing GYM1211KRRB, Lubricant Material NLGI 2 Lithium Complex Grease, Maximum Speed 2500 RPM, Maximum Temperature 250 Degrees F, Minimum Temperature -40 Degrees F
