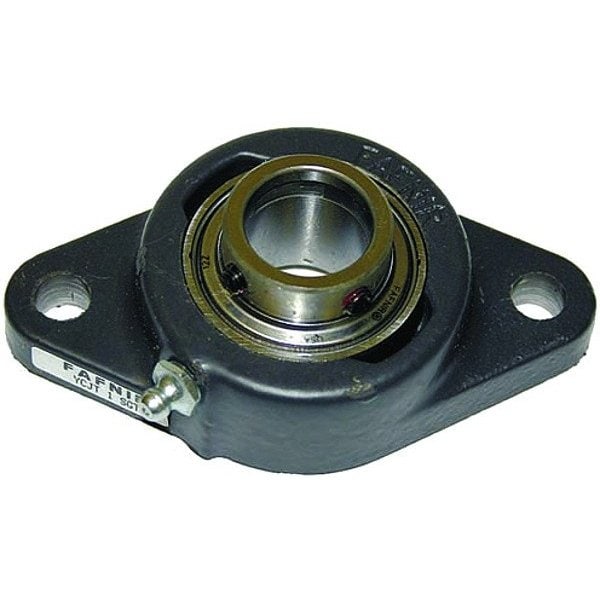

Flange Mount Ball
Mfr # YCJT 1 1/8 SGT
Zoro # G715549082
product price:Â $197.99
/ea
Free Shipping & Returns
Key Features
System of Measurement
Inch
Housing Type
Rhombus
Number of Mount Holes
2
Bearing Insert Type
Radial Ball
Shaft Locking Type
Set Screws
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
YCJT 1 1/8 SGT
Zoro #
G715549082
UPC #
-
Country of Origin
United States
Dimensions
Bore Diameter
1-1/8 in
Mount Hole Center-to-Center Length
4-19/32 in
Overall Length
5-9/16 in
Overall Width
1-45/64 in
Overall Height
3-1/8 in
Flange Thickness
33/64 in
Inner Ring Width
1.539 in
Center Height
1 9/16 in
Bore Diameter Tolerance
-0.0005 in
Mount Hole Size
1/2 in
Mounting Bolt Size
1/2 in
Back Side to Center Width
0.789 in
Description
Flange Mount Bearing, Back Side to Center Width 0.789 in, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 1/8 in, Bore Type Cylindrical, Center Height 1 9/16 in, Closure Double Sealed, Expansion Type Fixed, Housing Material Cast Iron, Housing Type Rhombus, Included Bearing GY1102KRRB SGT, Lubricant Material NLGI 2 Lithium Complex Grease, Maximum Speed 6000 RPM, Maximum Temperature 250 Degrees F, Minimum Temperature -40 Degrees F
