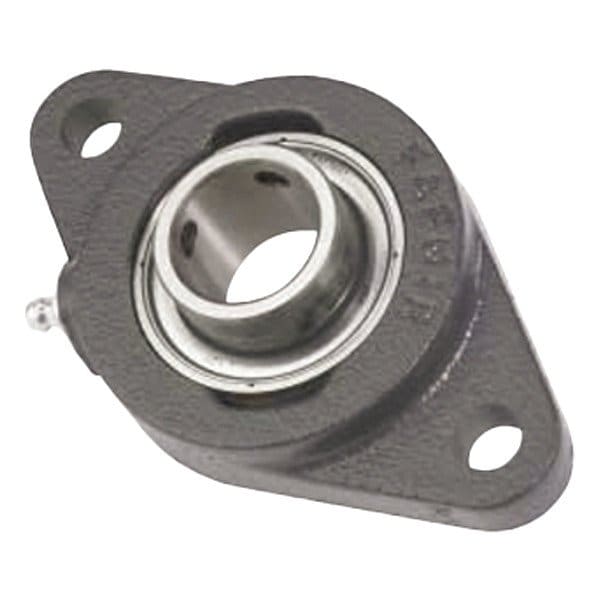

Flange Mount Bearing, AS, 1 3/16 in dia
Mfr # YCJTM 1 3/16 SGT
Zoro # G915563550
product price:Â $845.99
/ea
Free Shipping & Returns
Key Features
Bearing Insert Type
Radial Ball
Shaft Locking Type
Set Screws
Bearing Insert Material
Alloy Steel
Overall Height
3 5/8 in
Mounting Bolt Size
1/2 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
YCJTM 1 3/16 SGT
Zoro #
G915563550
UPC #
-
Country of Origin
United States
Dimensions
Overall Height
3 5/8 in
Mounting Bolt Size
1/2 in
Bore Diameter Tolerance
-0.0005 in
Center Height
1 13/16 in
Mount Hole Center-to-Center Length
5 1/8 in
Overall Length
6 1/8 in
Bore Diameter
1 3/16 in
Mount Hole Size
1/2 in
Inner Ring Width
1.688 in
Back Side to Center Width
0.827 in
Flange Thickness
15/32 in
Overall Width
1 13/16 in
Description
Flange Mount Bearing, Back Side to Center Width 0.827 in, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 3/16 in, Bore Type Cylindrical, Center Height 1 13/16 in, Closure Double Sealed, Expansion Type Fixed, Housing Material Cast Iron, Housing Type Rhombus, Included Bearing GYM1103KRRB SGT, Lubricant Material NLGI 2 Lithium Complex Grease, Maximum Speed 5600 RPM Grease, Maximum Temperature 250 Degrees F, Minimum Temperature -40 Degrees F
