Coolant Through Retention Knob
Mfr # PSC-275
Zoro # G311178242
product price: $23.79
/eaKey Features
Thread Size
1"-8
Overall Length
2.3 in
Flange to Angle Length
0.8 in
Flange to Knob Length
1 in
Coolant Fed
Coolant Through
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
PSC-275
Zoro #
G311178242
UPC #
-
Country of Origin
United States
Dimensions
Thread Size
1"-8
Overall Length
2.3 in
Flange to Angle Length
0.8 in
Flange to Knob Length
1 in
Neck Dia.
0.82 in
Taper Size
CAT50
Details
Item
Coolant Through Retention Knob
Coolant Fed
Coolant Through
Number of O-Ring(s)
0
Knob Angle
45 Degrees
Description

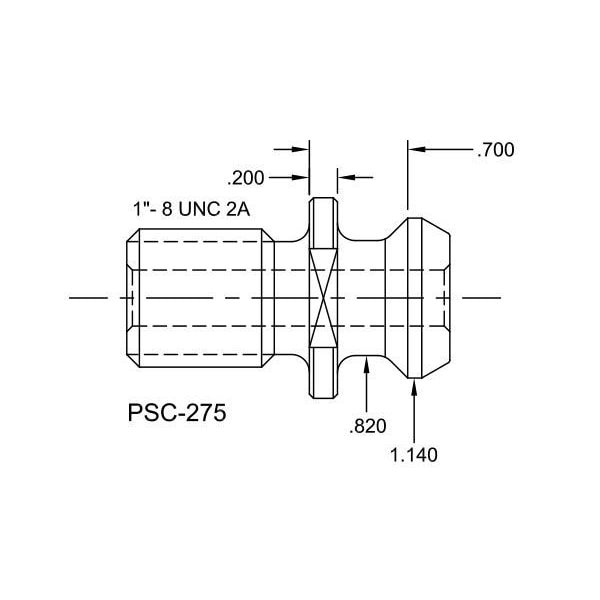

PSC-275, CAT50 Coolant Through Retention Knob with a 45 Degree angle
- •Manufactured utilizing AMS-6274/AISI-8620 alloy steel
- •Each retention knob is carburized (hardened) to 58-62HRC with a case depth of .020-.030. Core hardness 40HRC
- •Threads are single pointed to ensure full thread depth is achieved. Our process ensures high concentricity and balanced threads
- •All Retention Knobs surface (Not just the mating surface) have a precision finish of 32 RMA micro or better
