Coolant Through Retention Knob
Mfr # PSC-431X45
Zoro # G711178170
product price: $21.39
/eaKey Features
Overall Length
2.24 in
Number of O-Ring(s)
0
Taper Size
BT40
Knob Angle
45 Degrees
Flange to Angle Length
0.984 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
PSC-431X45
Zoro #
G711178170
UPC #
-
Country of Origin
United States
Dimensions
Thread Size
M16-2
Overall Length
2.24 in
Taper Size
BT40
Flange to Angle Length
0.984 in
Neck Dia.
0.392 in
Flange to Knob Length
1.26 in
Details
Item
Coolant Through Retention Knob
Number of O-Ring(s)
0
Knob Angle
45 Degrees
Coolant Fed
Coolant Through
Description

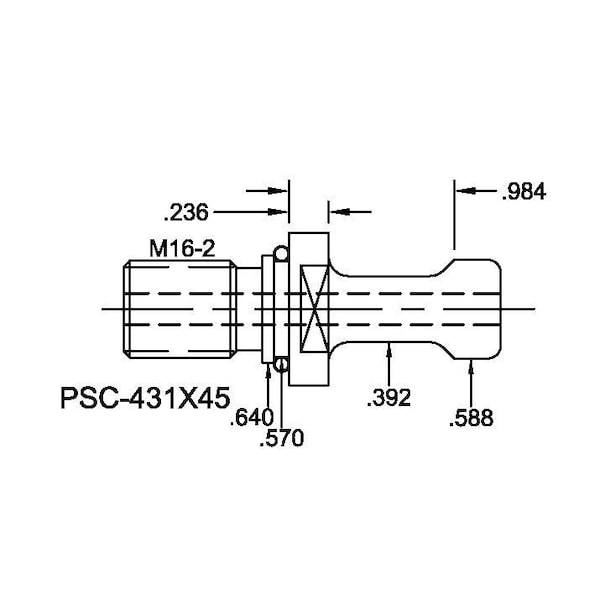

PSC-431X45, BT40 Coolant Through Retention Knob with a 45 Degree angle
- •Manufactured utilizing AMS-6274/AISI-8620 alloy steel
- •Each retention knob is carburized (hardened) to 58-62HRC with a case depth of .020-.030. Core hardness 40HRC
- •Threads are single pointed to ensure full thread depth is achieved. Our process ensures high concentricity and balanced threads
- •All Retention Knobs surface (Not just the mating surface) have a precision finish of 32 RMA micro or better
