Coolant Through Retention Knob
Mfr # PSC-472
Zoro # G411178241
product price: $24.19
/eaKey Features
Thread Size
M16-2
Overall Length
1.624 in
Knob Angle
45 Degrees
Flange to Knob Length
0.64 in
Taper Size
CAT40
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
PSC-472
Zoro #
G411178241
UPC #
-
Country of Origin
United States
Dimensions
Thread Size
M16-2
Overall Length
1.624 in
Flange to Knob Length
0.64 in
Taper Size
CAT40
Neck Dia.
0.49 in
Flange to Angle Length
0.44 in
Details
Item
Coolant Through Retention Knob
Knob Angle
45 Degrees
Number of O-Ring(s)
0
Coolant Fed
Coolant Through
Description

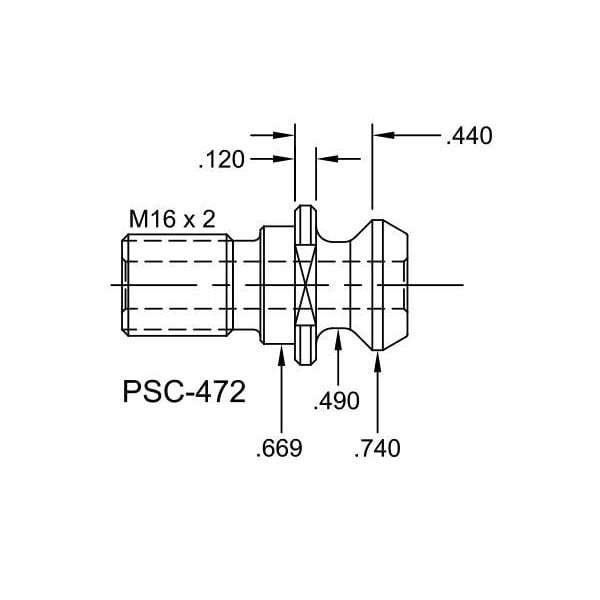

PSC-472, CAT40 Coolant Through Retention Knob with a 45 Degree angle
- •Manufactured utilizing AMS-6274/AISI-8620 alloy steel
- •Each retention knob is carburized (hardened) to 58-62HRC with a case depth of .020-.030. Core hardness 40HRC
- •Threads are single pointed to ensure full thread depth is achieved. Our process ensures high concentricity and balanced threads
- •All Retention Knobs surface (Not just the mating surface) have a precision finish of 32 RMA micro or better
