Solid Retention Knob
Mfr # PS-472
Zoro # G511178134
product price: $19.99
/eaKey Features
Overall Length
1.624 in
Coolant Fed
Non-Coolant Through
Taper Size
CAT40
Flange to Knob Length
0.64 in
Neck Dia.
0.49 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
PS-472
Zoro #
G511178134
UPC #
-
Country of Origin
United States
Dimensions
Thread Size
M16-2
Overall Length
1.624 in
Taper Size
CAT40
Flange to Knob Length
0.64 in
Neck Dia.
0.49 in
Flange to Angle Length
0.44 in
Details
Item
Solid Retention Knob
Coolant Fed
Non-Coolant Through
Number of O-Ring(s)
0
Knob Angle
45 Degrees
Description

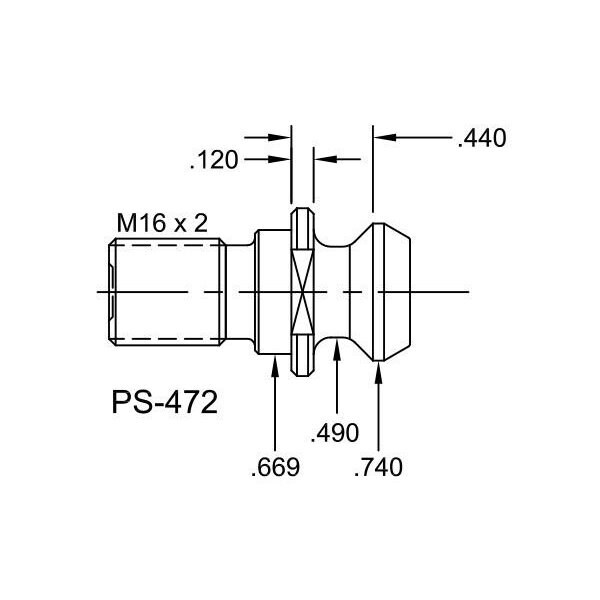

PS-472, CAT40 Solid Retention Knob with a 45 Degree angle
- •Manufactured utilizing AMS-6274/AISI-8620 alloy steel
- •Each retention knob is carburized (hardened) to 58-62HRC with a case depth of .020-.030. Core hardness 40HRC
- •Threads are single pointed to ensure full thread depth is achieved. Our process ensures high concentricity and balanced threads
- •All Retention Knobs surface (Not just the mating surface) have a precision finish of 32 RMA micro or better
Documents & Resources
