Solid Retention Knob
Mfr # PS-536X90
Zoro # G411178135
product price: $25.95
/eaKey Features
Thread Size
1"-8
Overall Length
3.353 in
Number of O-Ring(s)
0
Flange to Angle Length
1.384 in
Knob Angle
90 Degrees
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
PS-536X90
Zoro #
G411178135
UPC #
-
Country of Origin
United States
Dimensions
Thread Size
1"-8
Overall Length
3.353 in
Flange to Angle Length
1.384 in
Taper Size
CAT50
Neck Dia.
0.667 in
Flange to Knob Length
1.778 in
Details
Item
Solid Retention Knob
Number of O-Ring(s)
0
Knob Angle
90 Degrees
Coolant Fed
Non-Coolant Through
Description

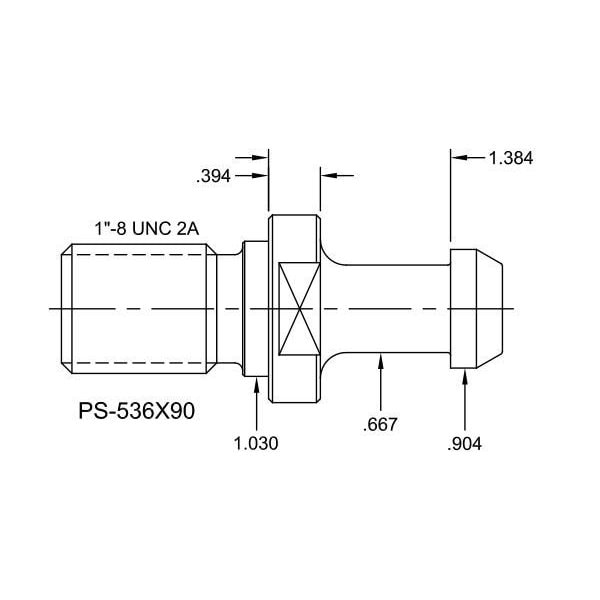

PS-536X90, CAT50 Solid Retention Knob with a 90 Degree angle
- •Manufactured utilizing AMS-6274/AISI-8620 alloy steel
- •Each retention knob is carburized (hardened) to 58-62HRC with a case depth of .020-.030. Core hardness 40HRC
- •Threads are single pointed to ensure full thread depth is achieved. Our process ensures high concentricity and balanced threads
- •All Retention Knobs surface (Not just the mating surface) have a precision finish of 32 RMA micro or better
