This item is Discontinued.

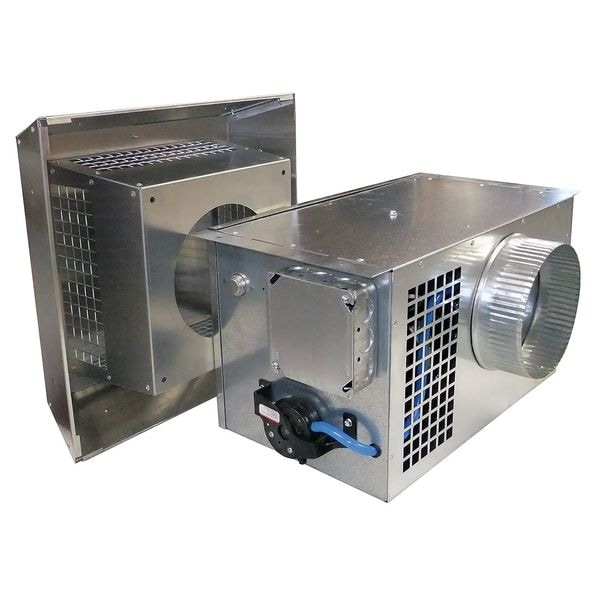

Tjernlund Products Combustion Air Intake System, 1170 CFM PAI-7

Combustion Air Intake System, 1170 CFM (Discontinued)

  • Mfr # PAI-7
  • Zoro # G9831631
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PAI-7
Zoro #
G9831631
UPC #
080956464002
Country of Origin
United States

Dimensions

Height
17 7/8 in
Width
17 1/4 in
Max. Duct Length
100 ft
Length
15 1/4 in
Inlet and Outlet Dia.
12 in
Overall Height
17 7/8 in
Overall Width
30 3/4 in
Overall Length
17 1/4 in
Inlet Diameter
12 in
Outlet Diameter
12 in
Minimum Vent Pipe Diameter
12 in
For Maximum Duct Length
100 ft
Maximum Vent Pipe Diameter
12 in

Details

Item
Combustion Air Intake System
Voltage
120 V
Agency Compliance
ETL
CFM
1,170 cfm
Includes
Intake Hood
Amps
12.6 A
BtuH Input
2,100,000
Standards
ETL Listed
Material
Metal
Compatible System
120V Appliance, 24V Gas Appliance, 750 mV Gas Appliance
Market
Commercial
Oil Appliance BtuH Input
Up to 3,700,000 BtuH
Maximum Airflow
1,175 cfm
Natural Gas Appliance BtuH Input
2,100,000 BtuH
Current
12.6 A
Maximum Appliance BtuH Input
3,700,000 BtuH
Nameplate Voltage
120V AC
For Fuel Type
Natural Gas and Oil

Description

Combustion Air Intake System, For Fuel Type Natural Gas and Oil, Maximum Appliance BtuH Input 3,700,000 BtuH, Maximum Airflow 1,175 cfm, Nameplate Voltage 120V AC, Compatible System 120V Appliance, 24V Gas Appliance, 750 mV Gas Appliance, Inlet Diameter 12 in, Outlet Diameter 12 in, Oil Appliance BtuH Input Up to 3,700,000 BtuH, Natural Gas Appliance BtuH Input 2,100,000 BtuH, Minimum Vent Pipe Diameter 12 in, Maximum Vent Pipe Diameter 12 in, For Maximum Duct Length 100 ft
