  9. TransferFan, Rm to Rm, 13-3/4L, 3-5/8W, 115V
Shop All Residential Exhaust Fans
Tjernlund Products

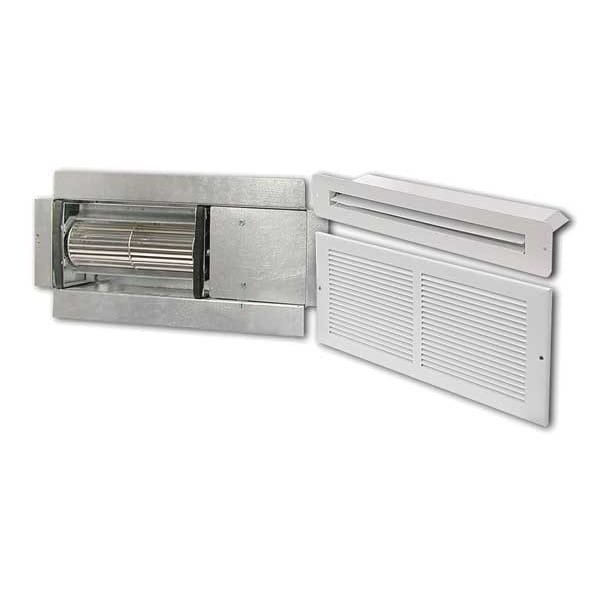

TransferFan, Rm to Rm, 13-3/4L, 3-5/8W, 115V

original price: $180.99
7% off
new price: $167.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Type Room to Room
  • CFM @ 0.000-In. SP 75 cfm
  • Voltage 120 V AC
  • Discharge Height (In.) 3 in
  • Discharge Width (In.) 13 3/4 in
See all product information

Product Information

Dimensions

Discharge Height (In.) 3 in
Discharge Width (In.) 13 3/4 in
Grille Width (In.) 7 3/4 in
Housing Length (In.) 13-3/4 in
Housing Width (In.) 3 5/8 in
Grille Length (In.) 15 3/4 in
Housing Height (In.) 4 3/4 in
Grille Width 8 in
Overall Depth 3 5/8 in
Grille Length 16 in
Inlet Height 3 in
Overall Height 4 3/4 in
Profile Height Family Medium
Inlet Width 15 1/8 in
Overall Width 15 5/8 in

Details

Item Transfer Fan
Type Room to Room
CFM @ 0.000-In. SP 75 cfm
Voltage 120 V AC
Hz 60
Motor RPM 1,800 RPM
Grille Color White
Sones HVI 1.15
Includes Cut-Out Templates, Mounting Hardware
Grille Material Steel
Housing Material Steel
Amps 0.5 A
Housing Finish Powder-Coated
Full Load Current 0.5 A
Number of Speeds 1
Phase 1
Motor Speed 1,800 RPM
Noise Level @ 0.100 in SP @ 5 ft 1.2 sones
Frequency 60 Hz
Maximum Noise Level 1 sones
Wattage 25 W
Nameplate Voltage 120V AC
Exhaust Airflow @ 0.000 in SP 75 cfm
Vent Design Ductless
Maximum Airflow 60 cfm
Duct Shape Rectangular
Grille Finish Satin
Discharge Direction Horizontal
Lighted Without Light
Motor Type C-Frame
Standards ANSI/UL 507, cETLus, CSA C22.2 #113-M
Maximum Coverage Area 150 sq ft
Sensor Type None
Includes Grill Yes
Heater Without Heater
Roomside Installation Yes

Description

Transfer Fan, Discharge Direction Horizontal, Duct Shape Rectangular, Housing Finish Powder-Coated, Housing Material Steel, Heater Without Heater, Includes Cut-Out Templates, Mounting Hardware, Mounting Location Interior Sidewall, Maximum Airflow 60 cfm, Exhaust Airflow @ 0.000 in SP 75 cfm, Maximum Noise Level 1 sones, Noise Level @ 0.100 in SP @ 5 ft 1.2 sones, Maximum Coverage Area 150 sq ft, Number of Speeds 1, Overall Depth 3 5/8 in, Overall Height 4 3/4 in, Overall Width 15 5/8 in
