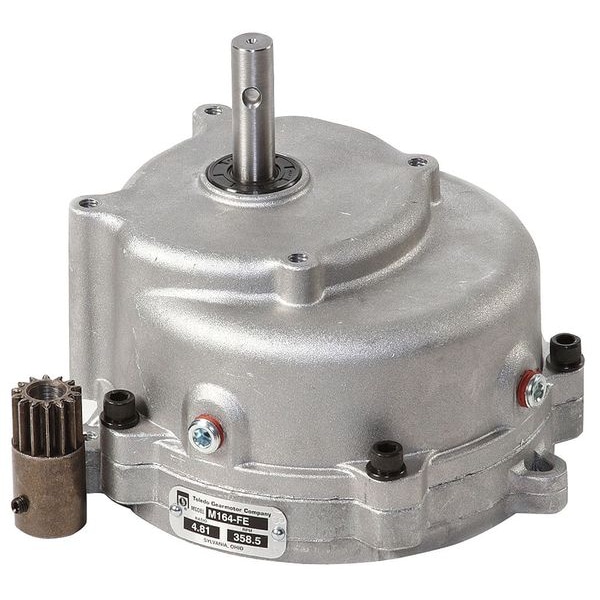

Speed Reducer, Direct Drive, 48N, 4.81:1
Mfr # M164-48N-FE
Zoro # G6384384
product price: $328.99
/eaSold in multiples of 10 for $3,289.90
Free Shipping & Returns
Key Features
Nominal Ratio
4.81:1
Input RPM
1725 rpm
Bore Dia.
1/2"
Nominal Output RPM
358 RPM
Overall Length
6.62"
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
M164-48N-FE
Zoro #
G6384384
UPC #
-
Country of Origin
United States
Dimensions
Bore Dia.
1/2"
Overall Length
6.62"
Dimension A
8 in
Dimension L
0.15 in
Dimension H
2.23 in /2.30 in
Dimension G
0.5 in
Dimension K
0.4 in
Dimension F
6.31 in
Dimension U
2.26 in/2.38 in
Output Shaft Dia.
7/8 in
Dimension M
5 in
Dimension B
4.15 in
Dimension C
1.18 in
Dimension D
7.25 in
Output Shaft Diameter
7/8 in
Description
Speed Reducer, Input Connection Type Direct Drive, Inline, Gear Type Spur, Maximum Output Speed 358 RPM, Motor Frame Designation 48N, Gear Ratio 4.80:1, Rotation CW/CCW, Maximum Input Horsepower 1.48 hp, Maximum Output Torque 255 in-lb, Overhung Load Capacity 107 lb, Mounting Orientation Any Angle, Bearing Type Ball, Maximum Input Speed 1,725 RPM, Gear Material Steel
