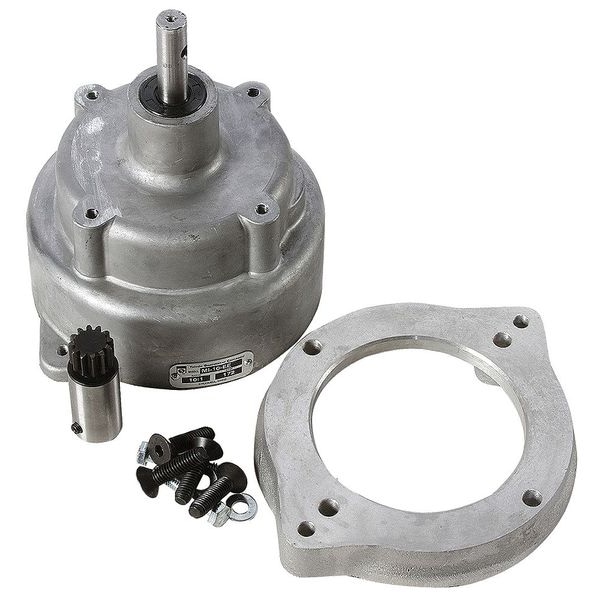

Speed Reducer, Direct Drive, 56C, 10:1

Mfr # MI-10-CE
Zoro # G7070287

$336.99

Free Shipping & Returns

Free Shipping on orders over $50

Free 30-Day Returns

Key Features

Nominal Ratio 10:1
Input RPM 1725 rpm
Bore Dia. 5/8"
Nominal Output RPM 172.5 RPM
Overall Length 7.72"

See all product information

Brand Toledo Gearmotor
MFR # MI-10-CE
Zoro # G7070287
Country of Origin United States
Category Speed Reducers

Dimensions

Bore Dia.	5/8"
Overall Length	7.72"
Output Shaft Dia.	5/8 in
Dimension M	3.037 in
Dimension G	2.03 in
Dimension B	6.75 in
Dimension H	5.13 in
Dimension D	6.88 in
Dimension F	0.6251 in /0.6257 in
Dimension A	8.25 in
Dimension K	1.88 in
Input Shaft Diameter	5/8 in
Output Shaft Diameter	5/8 in
Input Keyway Width	3/16 in
Input Keyway Depth	3/16 in
Length Less Shaft	5.69 in

Details

Item	In-Line Gear Reducer
Nominal Ratio	10:1
Input RPM	1725 rpm
Nominal Output RPM	172.5 RPM
Standards	NEMA
Lubrication	Food Grade Grease
Rotation	CW/CCW
Max. Input HP	0.5 hp
Reducer Model No.	MI-10-CE
Pinion Material	Hardened and Ground Steel
Speed Reducer Type	Direct Drive, Inline
Duty	Class I
Gear Type	Spur
Seal Type	Double Lip on Input and Output
Output Torque @ 1/2 HP	182 in-lb
Output Torque @ 1/3 HP	120 in-lb
Shaft Orientation	Parallel Inline
Housing Material	Annealed Aluminum
Bearings	Ball
Output Torque @ 1/4 HP	91 in-lb
Single/Double Output/Universal	Single Output
Overhung Load	91 lb
Max. Output Torque	182 in-lb
Mounting	Any Position
Frame	56c
Number of Stages	2
Gear Material	Steel
Nominal Output rpm	172.5 rpm
Overhung Load Capacity	91 ft-lb
Bearing Type	Ball
Maximum Output Torque	182 in-lb
Maximum Input Horsepower	0.5 hp
Gear Ratio	10:1
Mounting Orientation	Any Angle
Maximum Input Speed	1,725 RPM
Motor Frame Designation	56C
Maximum Output Speed	172.5 RPM
Input Connection Type	Direct Drive, Inline

Description

Speed Reducer, Input Connection Type Direct Drive, Inline, Gear Type Spur, Maximum Output Speed 172.5 RPM, Motor Frame Designation 56C, Gear Ratio 10:1, Rotation CW/CCW, Maximum Input Horsepower 0.5 hp, Maximum Output Torque 182 in-lb, Overhung Load Capacity 91 ft-lb, Mounting Orientation Any Angle, Bearing Type Ball, Maximum Input Speed 1,725 RPM, Gear Material Steel
