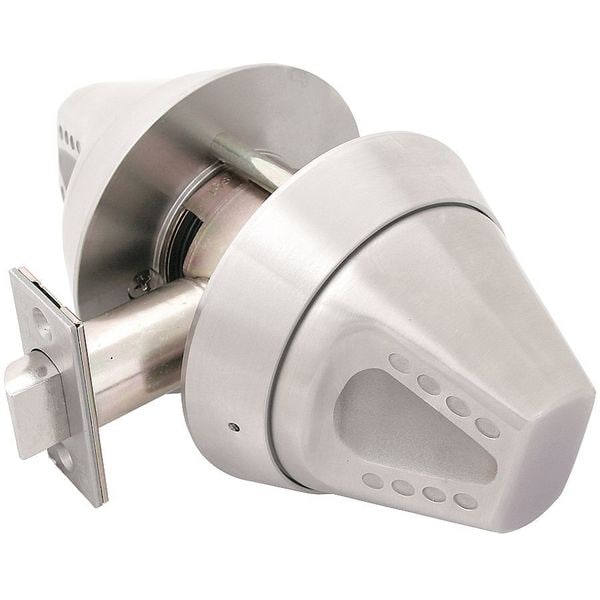

Townsteel Knob Lockset, Mechanical, Passage, Grd. 1 CRX-K-75-630 - main
Shop TOWNSTEEL

Knob Lockset, Mechanical, Passage, Grd. 1

  • Mfr # CRX-K-75-630

  • Zoro # G4806523

product price:  $645.85
/ea
Free Shipping & Returns

Key Features

Mortise / Cylindrical
Cylindrical
Lockset Function
Passage
Lockset Grade
1
Key Type
Keyed Different
Lockset Handle Type
Knob
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CRX-K-75-630
Zoro #
G4806523
UPC #
-
Country of Origin
United States

Dimensions

Required Door Thickness
1-3/4 in to 2 in
Door Thickness - Minimum
1 3/4 in
Door Thickness - Maximum
2 in
Strike Plate Width
1 1/4 in
Strike Plate Height
4 7/8 in

Details

Mortise / Cylindrical
Cylindrical
Lockset Function
Passage
Lockset Grade
1
Key Type
Keyed Different
Lockset Handle Type
Knob
Lockset Finish
Satin Stainless Steel
Keyway Type
Schlage C
Standards
ANSI/BHMA A156.2 Grade 1, BAA, UL Listed
ADA Compliant
No
Lockset Fire Rating
3 hr
Style
CRXK Knob
Strike Dim.
1-1/4 in x 4-7/8 in
Number of Keys
2
Electrical/Mechanical
Mechanical
Key Material
Brass
Item
Door Lockset
For Use With
Wood, Steel and Fiberglass Doors
Series
CRXK
Pins
6
Includes
Mounting Screws
Strike Type
ASA
Ligature Resistant
Yes
Backset
2 3/4 in
Lockset Performance Strength
Heavy Duty
Features
For Use On Wood and Metal Doors, Tamper Resistant Mounting Screws
Keying
Keyed Different
Number of Pins
6
Material
Brass, Steel, Zinc
Cylinder Core Type
Fixed
Mortise/Cylindrical
Cylindrical
Application
Commercial
Hand Orientation
Non-Handed
ANSI Grade
1
Ligature-Resistant
Ligature-Resistant
Locking/Unlocking Access - Inside
Not Lockable
Performance Grade
1
Includes Hardware
Hardware Included
ANSI/BHMA Finish
Satin Stainless Steel
Locking/Unlocking Access - Outside
Not Lockable
Knob/Handle Material
Stainless Steel
Latch Bolt/Dead Bolt
Latch Bolt
Fire Rating
3 hr
Lockset Function ANSI Code
F75
UL Fire Rating
UL10C
Lockset Style
CRX-K Knob
Lockset Type
Mechanical

Description

Knob Lockset,Mechanical,Passage,Grd. 1
