  13. Lever Lockset, Mechanical, Passage, Grade 1

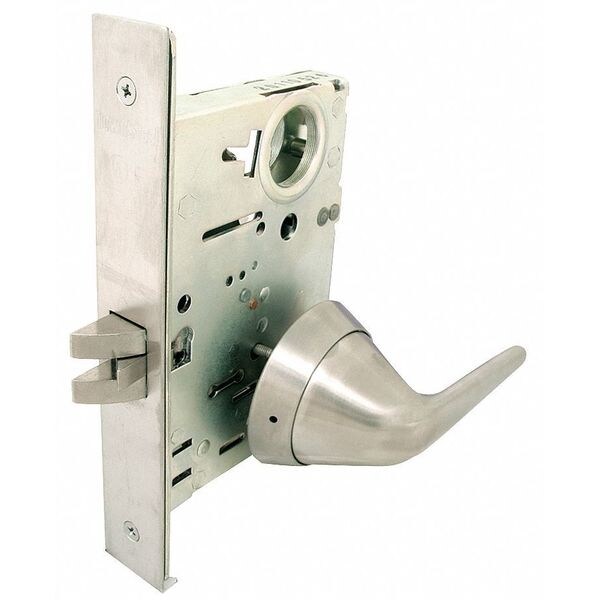

Townsteel Lever Lockset, Mechanical, Passage, Grade 1 MRX-S-L-01-630 - main

Lever Lockset, Mechanical, Passage, Grade 1

  • Mfr # MRX-S-L-01-630

  • Zoro # G4806505

product price: $678.99
/ea
Free Shipping & Returns

Key Features

Backset
2 3/4 in
Electrical/Mechanical
Mechanical
For Use With
Wood, Steel and Fiberglass Doors
Includes
Lever, Mounting Screws
Key Type
Keyed Different
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
MRX-S-L-01-630
Zoro #
G4806505
UPC #
-
Country of Origin
United States

Dimensions

Required Door Thickness
1-3/4 in
For Door Thickness
1-3/4"
Strike Plate Width
1 1/4 in
Strike Plate Height
4 7/8 in
Door Thickness - Maximum
1 3/4 in

Details

Backset
2 3/4 in
Electrical/Mechanical
Mechanical
For Use With
Wood, Steel and Fiberglass Doors
Includes
Lever, Mounting Screws
Key Type
Keyed Different
Keyway Type
Schlage C
Location Type
Healthcare, Institutional, School
Lockset Function
Passage
Lockset Grade
1
Lockset Handle Type
Lever
Mortise/Cylindrical
Mortise
Number of Pins
6
Series
MRXL
Style
MRXL Rose
Finish
Satin Stainless
Lockset Fire Rating
3 hr
Strike Type
ASA
Key Material
Brass
Standards
ANSI/BHMA A156.12, ANSI/BHMA Grade 1, BAA, UL Listed
Item
Door Lockset
Strike Dim.
1-1/4 in x 4-7/8 in
ADA Compliant
Yes
Features
For Use On Wood and Metal Doors, Tamper Resistant Mounting Screws
Mortise / Cylindrical
Mortise
Number of Keys
2
Lockset Finish
Satin Stainless Steel
Ligature Resistant
Yes
Pins
6
Grade
1
Application
Commercial
Fire Rated
3 hr.
Cylinder
Standard or IC Core
Material
Brass, Steel, Zinc
Keying
Keyed Different
Type
Mortise
Function
Passage or Closet
Visual Indicator Message
No Message
Handle Type
Lever
Case Material
Steel
Lockset Function ANSI Code
F01
UL Fire Rating
UL10C
Ligature-Resistant
Ligature-Resistant
Includes Hardware
Hardware Included
Latch Bolt/Dead Bolt
Spring Latch
ANSI Grade
1
Lockset Type
Mechanical
Knob/Handle Material
Stainless Steel
Lockset Style
MRXL Sectional
Fire Rating
3 hr
Locking/Unlocking Access - Outside
Not Lockable
ANSI/BHMA Finish
Satin Stainless Steel
Locking/Unlocking Access - Inside
Not Lockable

Description

Lever Lockset,Mechanical,Passage,Grade 1
