Shop TRANE

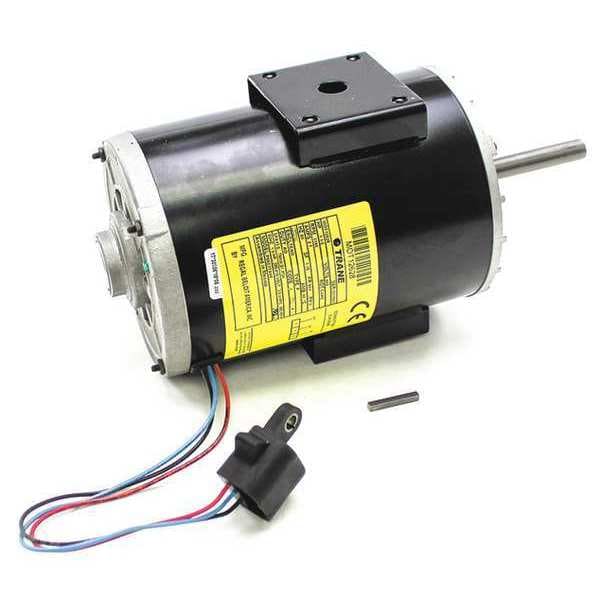

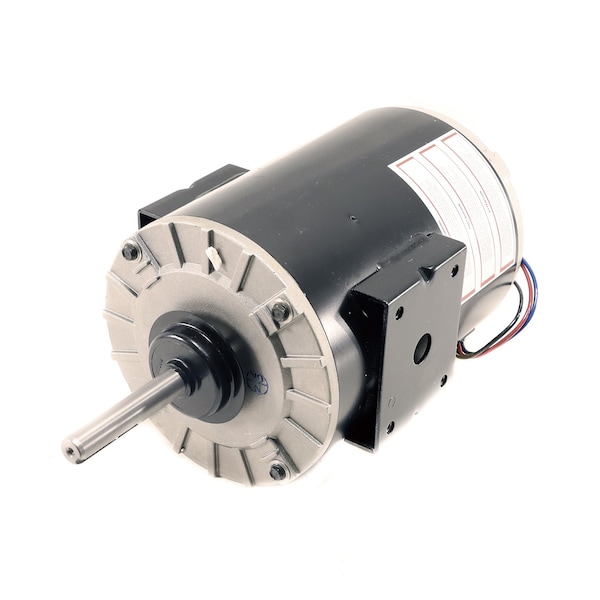

Condenser Fan Motor, 1 1/2 hp

  • Mfr # MOT12628

  • Zoro # G2492065

product price:  $1,150.99
/ea
Free Shipping & Returns

Key Features

Voltage
460V AC
Motor Service Factor
1.15
Overall Length
14 1/16 in
Motor Design
Three-Phase
Motor Bearings
Ball
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
MOT12628
Zoro #
G2492065
UPC #
-
Country of Origin
China

Dimensions

Overall Length
14 1/16 in
Shaft Dia.
5/8 in
Frame Size
56Y
Shaft Diameter
5/8 in
Shaft Length
3 in
Wire Rope Length
14 1/16 in

Details

Item
Motor, 1.5 HP, 380-415/460V
Voltage
460V AC
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Bearings
Ball
Phase
Three
Ins. Class
F
Motor Enclosure Design
Totally Enclosed Air-Over
Voltage Compatibility
460V AC
Motor Shaft Rotation
CW/CCW
Full Load Amps
2.4 A
HP
1 1/2 hp
Service Factor @ 50Hz
1.15
Conduit Box Position
F1
Motor Mounting Position
Vertical Shaft Up
Full Load Amps @ 50Hz
2.4 A
Max. Ambient Temp.
140 Degrees F
Voltage @ 50Hz
460
HP @ 50Hz
1 1/2 hp
Motor Enclosure Type
Totally Enclosed Air-Over
Ambient Temperature - Maximum
60 Degrees C
Mounting Position
Vertical Shaft Up
Nameplate Service Factor @ 50 Hz
1.15
Bearing Type
Ball
Nameplate Voltage @ 50 Hz
460V AC
Product Type
Condenser Fan Motor
Compatible Brand
Trane
Nameplate Horsepower @ 50 Hz
1 1/2 hp
Full Load Current @ 60 Hz
2.7 A
Insulation Class
F
Nameplate Service Factor @ 60 Hz
1.15
Capacitor Required
Capacitor Not Required
Full Load Current @ 50 Hz
2.4 A

Description

Condenser Fan Motor, Three Phase, Motor Design Three-Phase, 1 1/2 hp HP, Nameplate RPM 1,140 RPM, Voltage 460V AC, Full Load Amps 2.7 A, 56Y Frame, Motor Service Factor 1.15, Ins. Class F, Max. Ambient Temp. 60 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Position Vertical Shaft Up
