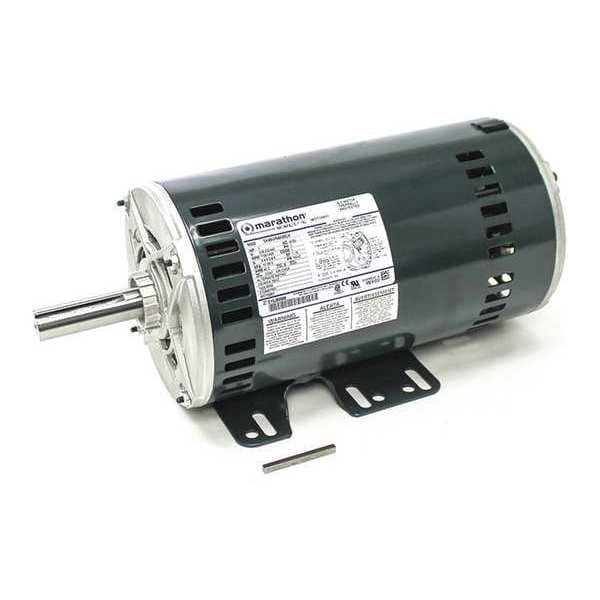

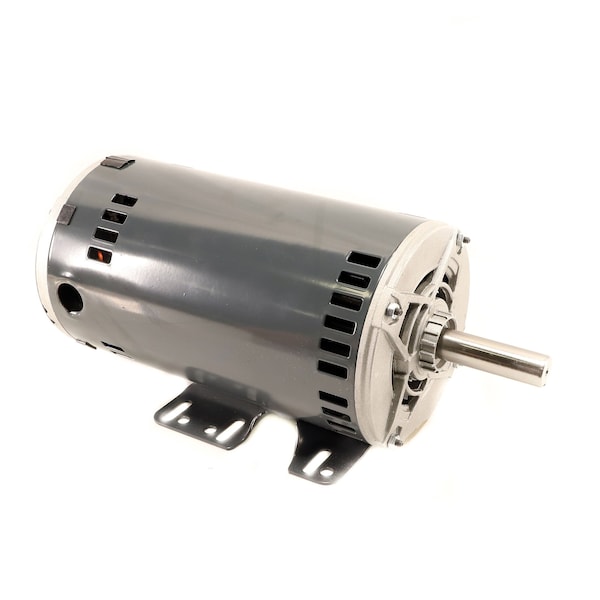

Fan and Blower Motor, 3 hp

  • Mfr # MOT9801

  • Zoro # G2491791

product price:  $2,267.99
/ea
Free Shipping & Returns

Key Features

Voltage
208-230/460V AC
RPM Range
1,701-1,800
Full Load Amps
9.4 A
Motor Shaft Rotation
CW/CCW
Frame
56HZ
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
MOT9801
Zoro #
G2491791
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
7/8 in
Overall Length
15 13/16 in
Shaft Length
2 3/4 in
Frame Size
56HZ
Shaft Diameter
7/8 in
Wire Rope Length
15 13/16 in

Details

Item
Motor, 3 HP, 208-230/460V, 1740 rpm
Voltage
208-230/460V AC
RPM Range
1,701-1,800
Full Load Amps
9.4 A
Motor Shaft Rotation
CW/CCW
Frame
56HZ
Motor Bearings
Ball
Motor Design
Three-Phase
Motor Enclosure Design
Open Drip Proof
Ins. Class
B
Motor Service Factor
1.15
Motor Mounting Type
Rigid Base
Nameplate RPM
1,740/1,450
Phase
Three
HP
3 hp
Voltage Compatibility
208V AC, 230V AC, 460V AC
Usable @ 208V
Usable at 208V
Max. Ambient Temp.
140 Degrees F
Service Factor @ 50Hz
1.15
Weight
45.3 lb
Duty Cycle
Continuous
Nominal Efficiency
83.8 %
Full Load Amps @ 50Hz
9.4 A
HP @ 50Hz
3 hp
Voltage @ 50Hz
208-230
Motor Mounting Position
Horizontal Shaft Down
Full Load Current @ 60 Hz
9.4-9.2/4.6 A
Mounting Position
Horizontal/Vertical Shaft Down
Full Load Current @ 50 Hz
9.4 A
Nameplate Voltage @ 50 Hz
208-230V AC
Nameplate Service Factor @ 60 Hz
1.15
Product Type
Fan and Blower Motor
Capacitor Required
Capacitor Not Required
Insulation Class
B
Nameplate Service Factor @ 50 Hz
1.15
Ambient Temperature - Maximum
60 Degrees C
Duty
Continuous
Bearing Type
Ball
Nameplate Horsepower @ 50 Hz
3 hp
Motor Enclosure Type
Open Drip Proof
Compatible Brand
Trane

Description

Fan and Blower Motor, Three Phase, Motor Design Three-Phase, 3 hp HP, Nameplate RPM 1725/1425 RPM, Voltage 208-230/460V AC, Full Load Amps 9.4-9.2/4.6 A, 56HZ Frame, Usable @ 208V Usable at 208V, Motor Service Factor 1.15, Ins. Class B, Max. Ambient Temp. 60 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal/Vertical Shaft Down
