Shop TRANE

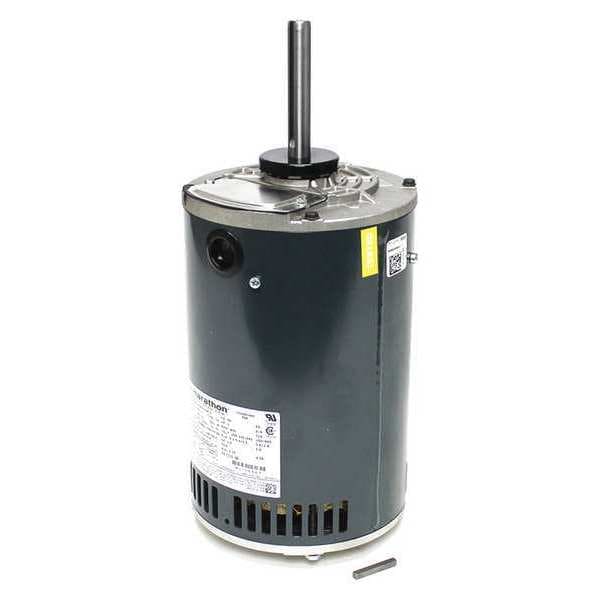

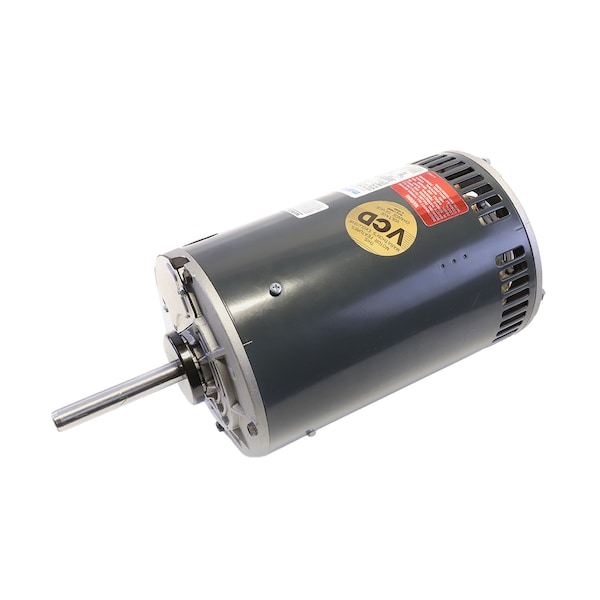

Condenser Fan Motor, 1 3/4 hp

  • Mfr # MOT6367
  • Zoro # G2491837
product price:
$
2,280.99
/ea
Free Shipping & Returns

Key Features

Voltage
200V AC to 460V AC, 400V AC
Full Load Amps
4.9 A
Frame
56
RPM Range
0-1,000
Motor Enclosure Design
Totally Enclosed Air-Over
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
MOT6367
Zoro #
G2491837
UPC #
-
Country of Origin
United States

Dimensions

Overall Length
16 1/4 in
Shaft Dia.
5/8 in
Shaft Length
5 in
Frame Size
56Z
Shaft Diameter
5/8 in
Wire Rope Length
16 1/4 in
Length
16 1/4 in

Details

Item
Motor, 1 HP, 200/460V, 850 rpm, 2 Speed
Voltage
200V AC to 460V AC, 400V AC
Full Load Amps
4.9 A
Frame
56
RPM Range
0-1,000
Motor Enclosure Design
Totally Enclosed Air-Over
No. of Speeds
1
Motor Bearings
Ball
Motor Mounting Type
Belly Band
Nameplate RPM
850
Motor Service Factor
1
Ins. Class
B
HP
1 hp
Phase
Three
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200V AC, 400V AC, 460V AC
Motor Design
Three-Phase
Full Load Amps @ 50Hz
4.9 A
Service Factor @ 50Hz
1
Weight
61 lb
Voltage @ 50Hz
200-460
HP @ 50Hz
1 hp
Max. Ambient Temp.
104 Degrees F
Usable @ 200V
Usable at 200V
Bearing Type
Ball
Nameplate Service Factor @ 60 Hz
1
Full Load Current @ 60 Hz
5.1-5.0/2.5//5.6/2.5 A
Compatible Brand
Trane
Number of Speeds
1
Ambient Temperature - Maximum
40 Degrees C
Nameplate Service Factor @ 50 Hz
1
Product Type
Condenser Fan Motor
Capacitor Required
Capacitor Not Required
Full Load Current @ 50 Hz
4.9 A
Motor Enclosure Type
Totally Enclosed Air-Over
Nameplate Voltage @ 50 Hz
200/460V AC
Insulation Class
B
Nameplate Horsepower @ 50 Hz
1 hp

Description

Condenser Fan Motor, Three Phase, Motor Design Three-Phase, 1 3/4 hp HP, Nameplate RPM 850/725 RPM, No. of Speeds 1, Voltage 200-230/460V AC, Full Load Amps 5.1-5.0/2.5//5.6/2.5 A, 56Z Frame, Usable @ 200V Usable at 200V, Motor Service Factor 1, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Belly Band
