Shop TRANE

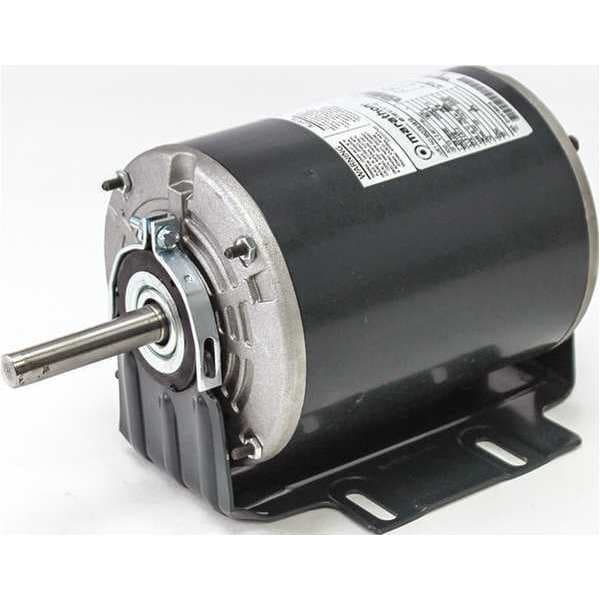

Condenser Fan Motor, 1/2 hp

  • Mfr # MOT1512
  • Zoro # G2492047
product price:
$
1,912.99
/ea
Free Shipping & Returns

Key Features

Voltage
230V AC, 460V AC
Motor Mounting Type
Resilient Base
Motor Enclosure Design
Totally Enclosed Air-Over
Motor Bearings
Ball
HP
1/2 hp
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
MOT1512
Zoro #
G2492047
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Length
2 3/4 in
Overall Length
11 15/16 in
Shaft Dia.
5/8 in
Frame Size
48
Shaft Diameter
5/8 in
Wire Rope Length
11 15/16 in
Length
11 15/16 in

Details

Item
Motor, 1/2 HP, 230-460V, 3 Phase, 110 rpm
Voltage
230V AC, 460V AC
Motor Mounting Type
Resilient Base
Motor Enclosure Design
Totally Enclosed Air-Over
Motor Bearings
Ball
HP
1/2 hp
Motor Shaft Rotation
CWSE
Motor Design
Three-Phase
Motor Service Factor
1
No. of Speeds
1
Ins. Class
B
Frame
48
Nameplate RPM
1200
Phase
Three
Voltage Compatibility
230V AC, 460V AC
Full Load Amps
1.8 A
RPM Range
1,101-1,200
Nameplate Service Factor @ 60 Hz
1
Insulation Class
B
Motor Enclosure Type
Totally Enclosed Air-Over
Number of Speeds
1
Compatible Brand
Trane
Capacitor Required
Capacitor Not Required
Product Type
Condenser Fan Motor
Full Load Current @ 60 Hz
1.8 A
Bearing Type
Ball

Description

Condenser Fan Motor, Three Phase, Motor Design Three-Phase, 1/2 hp HP, Nameplate RPM 1,200 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 1.8 A, 48 Frame, Motor Service Factor 1, Ins. Class B, Motor Shaft Rotation CWSE, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Resilient Ring
