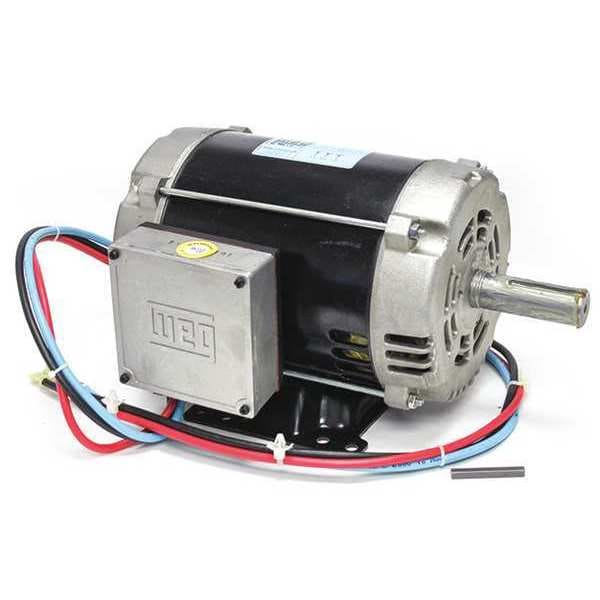

Trane Fan and Blower Motor, 7 1/2 hp MOT9803 - main

Fan and Blower Motor, 7 1/2 hp

  • Mfr # MOT9803

  • Zoro # G2491785

product price:  $2,335.99
/ea
Free Shipping & Returns

Key Features

Voltage
208/230V AC
Motor Design
Three-Phase
Motor Service Factor
1.15
Motor Shaft Rotation
CW/CCW
Nameplate RPM
3475
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
MOT9803
Zoro #
G2491785
UPC #
-
Country of Origin
United States

Dimensions

Shaft Dia.
1 1/8 in
Overall Length
16 3/4 in
Shaft Length
2 in
Shaft Diameter
1 1/8 in
Frame Size
184TZ

Details

Item
Motor, 7.5 HP ,208-230V, 3475 rpm
Voltage
208/230V AC
Motor Design
Three-Phase
Motor Service Factor
1.15
Motor Shaft Rotation
CW/CCW
Nameplate RPM
3475
Ins. Class
B
Motor Bearings
Ball
Motor Enclosure Design
Open Drip Proof
RPM Range
3,001-3,600
Voltage Compatibility
208V AC, 230V AC
HP
7 1/2 hp
Phase
Three
Motor Mounting Type
Rigid Base
Usable @ 208V
Usable at 208V
Weight
88 lb
Voltage @ 50Hz
208-230
Max. Ambient Temp.
104 Degrees F
Conduit Box Position
F1
Duty Cycle
Continuous
Service Factor @ 50Hz
1.15
HP @ 50Hz
7 3/4 hp
Motor Enclosure Type
Open Drip Proof
Full Load Current @ 60 Hz
19.4-17//14.2 A
Product Type
Fan and Blower Motor
Compatible Brand
Trane
Capacitor Required
Capacitor Not Required
Ambient Temperature - Maximum
40 Degrees C
Duty
Continuous
Nameplate Horsepower @ 50 Hz
7 3/4 hp
Nameplate Voltage @ 50 Hz
208-230V AC
Bearing Type
Ball
Insulation Class
B
Nameplate Service Factor @ 60 Hz
1.15
Nameplate Service Factor @ 50 Hz
1.15

Description

Fan and Blower Motor, Three Phase, Motor Design Three-Phase, 7 1/2 hp HP, Nameplate RPM 3,475 RPM, Voltage 208-230V AC, Full Load Amps 19.4-17//14.2 A, 184TZ Frame, Usable @ 208V Usable at 208V, Motor Service Factor 1.15, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Rigid Base
